ELFC-KF-45-1500 FESTO Passive Guide Axis: A Mechanical Motion Solution with High Precision and Reliability

In the fields of automated machinery and precision engineering, there are stringent requirements for the accuracy and stability of mechanical motion systems. The ELFC-KF-45-1500 passive guide axis introduced by FESTO, with its superior performance and high-standard design, provides strong support for achieving precise motion control in complex industrial applications.

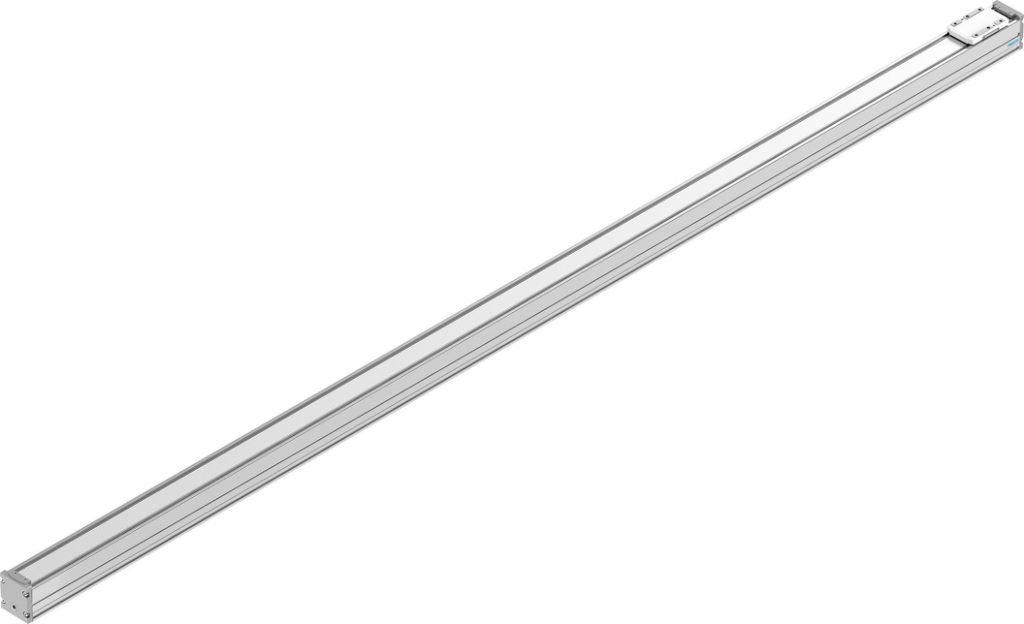

Product Overview: The ELFC-KF-45-1500 passive guide axis is a high-performance mechanical motion component designed by FESTO, featuring a 1500mm working stroke and size 45, suitable for long-stroke and high-load automation applications.

Product Features:

1. Long Stroke Design: A 1500mm working stroke to meet the needs of long-distance motion control.
2. High-Precision Guide Rail: Equipped with a recirculating ball bearing guide rail to ensure smooth and accurate motion.
3. Various Installation Options: Offer flexible installation position choices to adapt to different mechanical structures.

Technical Specifications:

• Guide Rail Type: Recirculating ball bearing guide rail, ensuring high-precision motion under high loads.
• Corrosion Resistance Class: CRC Level 0, indicating that the product does not have corrosion resistance and is suitable for dry environments.
• Clean Room Class: Class 7 according to ISO 14644-1, suitable for application environments with high cleanliness requirements.
• Protection Class: IP40, providing basic protection against dust and water ingress.
• Ambient Temperature Range: 0°C to 50°C, suitable for a variety of industrial environments.
• Maximum Acceleration: 15 m/s², offering rapid response capabilities.
• Maximum Speed: 1.5 m/s, meeting the needs of high-speed motion.

Application Scenarios: The ELFC-KF-45-1500 passive guide axis is widely used in automated machinery, robotics, precision instruments, and other fields, especially excelling in mechanical motion control that requires high precision and stability.

With its long stroke design, high-precision guide rail, and high-standard manufacturing quality, FESTO’s ELFC-KF-45-1500 passive guide axis has become an ideal choice in the field of industrial automation. Choose the ELFC-KF-45-1500 for a precise, reliable, and durable mechanical motion partner.
