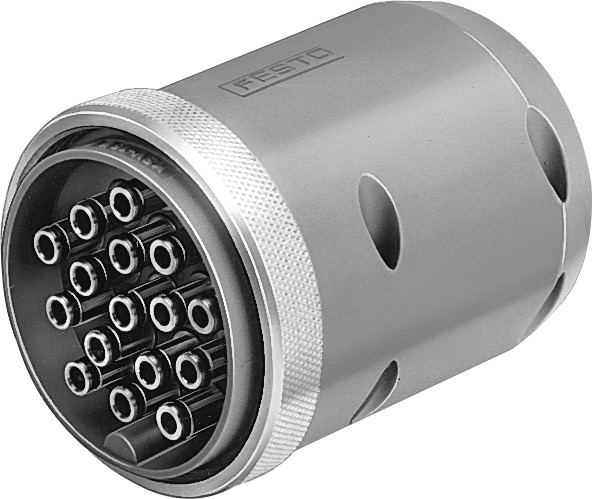

KSV-32-B FESTO Multi-Port Connector: Efficient Pneumatic Connection with Exceptional Performance

In automated control systems, the connection efficiency and reliability of pneumatic components are crucial for the overall performance of the system. The KSV-32-B multi-port connector introduced by FESTO, with its high-standard design and manufacturing, provides a stable and efficient connection solution for pneumatic control systems.

Product Overview: The KSV-32-B multi-port connector is a pneumatic system connection component designed by FESTO, featuring a nominal diameter of 4mm and a wide working pressure range, suitable for various industrial automation applications.

Product Features:

1. Broad Working Pressure Range: Suitable for working pressures from -0.95 bar to 16 bar, meeting the needs of different working conditions.
2. Corrosion-Resistant Design: With medium corrosion resistance (CRC Level 2), it is suitable for environments that may come into contact with corrosive media.
3. High Medium Temperature Range: The medium temperature range is from -10°C to 60°C, adapting to a variety of working environments.

Technical Specifications:

• Nominal Diameter: 4mm, suitable for standard pneumatic systems.
• Working Pressure Range: -0.95 bar to 16 bar, offering a wide range of working pressure adaptability.
• Working Medium: Compressed air in accordance with ISO 8573-1:2010, compatible with lubricating media.
• Corrosion Resistance Class: CRC Level 2, with medium corrosion resistance capabilities.
• PWIS Compliance: Compliant with the VDMA24364-B1/B2-L standard, ensuring the quality of the product’s surface treatment.
• Medium Temperature Range: -10°C to 60°C, adapting to different temperature working environments.
• Ambient Temperature Range: Consistent with the medium temperature range, ensuring performance under various environmental conditions.
• Product Weight: 374g, convenient for carrying and installation.
• Maximum Number of Interfaces: 32, providing a rich selection of connection options.
• Pneumatic Interfaces: Compatible with various pneumatic interface standards such as PK-2, PK-3, and PK-4.
• Color: Grey, with a professional and uniform appearance.

Application Scenarios: The KSV-32-B multi-port connector is widely used in automated machinery, pneumatic control systems, precision instruments, and other fields, especially outstanding in automated systems that require high connection efficiency and stability.

With its efficient connection performance, broad working pressure adaptability, and exceptional manufacturing quality, FESTO’s KSV-32-B multi-port connector has become an ideal choice in the field of industrial automation. Choose the KSV-32-B for a stable, reliable, and efficient pneumatic connection partner.
