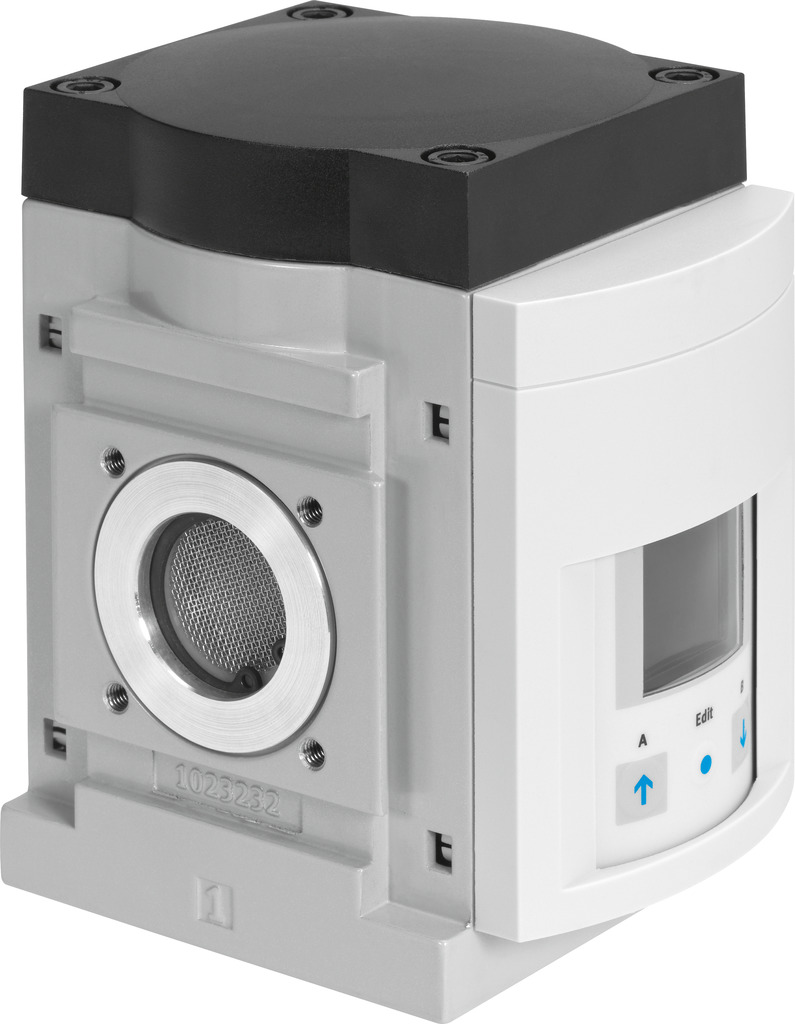

SFAM-90-5000L-M-2SA-M12 FESTO Flow Sensor: Accurate Measurement with Intelligent Control

In the fields of industrial automation and process control, precise flow measurement is crucial for ensuring production efficiency and product quality. The SFAM-90-5000L-M-2SA-M12 flow sensor introduced by FESTO, with its high-precision measurement and intelligent control functions, provides a reliable flow monitoring solution for industrial applications.

Product Overview: The SFAM-90-5000L-M-2SA-M12 flow sensor is a device designed by FESTO for accurately measuring the flow of compressed air and nitrogen, featuring a wide range of flow measurement and high repeatability, suitable for various industrial environments.

Product Features:

1. Wide Measurement Range: The flow measurement range is from 0 liters per minute to 5000 liters per minute, meeting the needs of different scales of flow monitoring.
2. High Accuracy and Stability: The flow accuracy reaches ± (3% o.m.v. + 0.3% FS), with a repeatability deviation of 0.2% FS, ensuring long-term stable operation.
3. Intelligent Control: Equipped with two switchable PNP or NPN switch outputs, supporting window comparator or threshold comparator functions for precise control.

Technical Specifications:

• Certification: Compliant with multiple international certifications, including RCM, c UL us, and CE, ensuring product quality and safety.
• Working Medium: Compatible with compressed air and nitrogen, conforming to the ISO 8573-1:2010 standard.
• Medium and Ambient Temperature Range: Both within 0°C to 50°C, adapting to various working environments.
• Working Pressure: Up to 1.6 Mpa (16 bar / 232 psi), suitable for high-pressure conditions.
• Electrical Interface: M12x1, A-coding, compliant with the EN 61076-2-101 standard, ensuring the reliability of electrical connections.
• Display Type: Luminous LCD in multiple colors, providing clear and intuitive readings.
• Setting Options: Teach-in via display and buttons, with PIN code anti-tampering function.

Application Scenarios: The SFAM-90-5000L-M-2SA-M12 flow sensor is widely used in air source treatment, automated machinery, medical equipment, and other fields, especially outstanding in industrial automation systems that require high-precision flow control.

With its accurate measurement capabilities, intelligent control functions, and robust construction, FESTO’s SFAM-90-5000L-M-2SA-M12 flow sensor has become an ideal choice in the field of industrial automation. Choose the SFAM-90-5000L-M-2SA-M12 for a reliable, accurate, and easily integrated flow monitoring partner.
