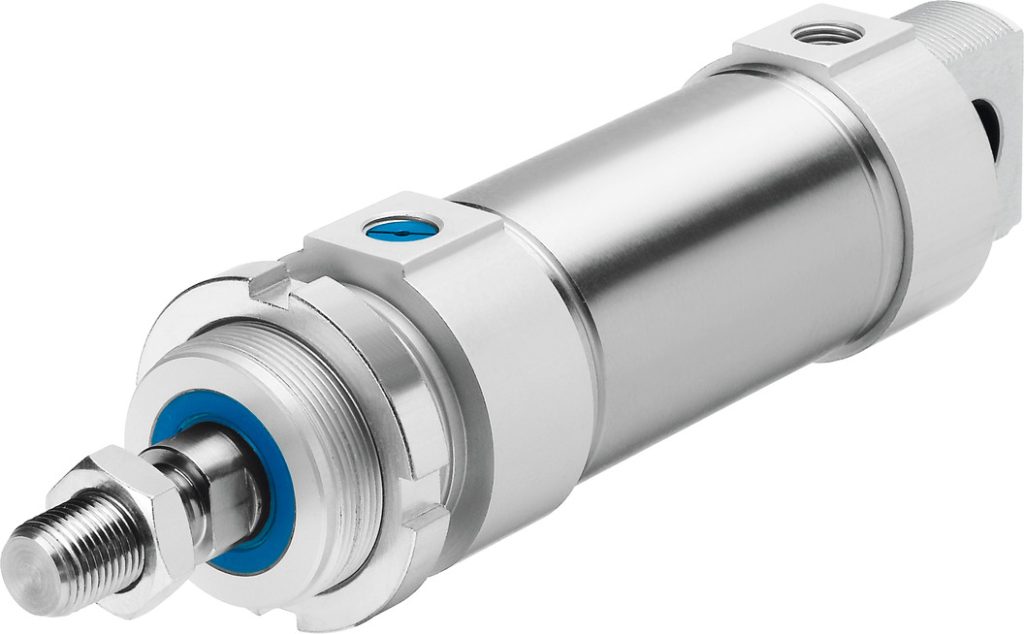

ESNU-40-10-P-A FESTO Round Cylinder: An Efficient Power Solution for Industrial Automation

In the field of industrial automation, which pursues precise control and high performance, FESTO has provided reliable solutions to customers worldwide with its innovative technology and excellent product quality. The ESNU-40-10-P-A round cylinder, as a member of the FESTO product line, meets a variety of industrial needs with its outstanding performance and flexible application.

Product Features:

• Stroke: 10 mm, ensuring precise control capabilities.
• Piston Diameter: 40 mm, providing sufficient thrust and stability.
• Piston Rod Thread: M12x1.25, facilitating connection with other components.
• Buffering: Elastic buffer rings/pads on both ends, effectively reducing impact and noise.

Structure and Function:

• Cylinder Diameter: The design of the piston rod and cylinder diameter ensures the stability and durability of the cylinder.
• Position Detection: Precise position control through proximity switches.
• Symbol: 00991729, for easy identification and maintenance.
• Working Pressure: 0.12 Mpa to 1 Mpa (1.2 bar to 10 bar), adapting to different work requirements.
• Working Mode: Push, single-acting, simplifying the operation process.
• Working Medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4] standard.

Corrosion Resistance and Environmental Adaptability:

• Corrosion Resistance Level: CRC 2, medium corrosion resistance, suitable for various environments.
• Paint Wetness Defect Material (PWIS) Compliance: VDMA24364-B1/B2-L, ensuring the surface quality of the product.
• Ambient Temperature: -20 °C to 80 °C, adapting to extreme temperature changes.

Performance Parameters:

• Spring Return Force After Piston Rod Retraction: 60 N, ensuring the cylinder’s rapid retraction.
• Theoretical Force Value at 6 bar: Return stroke 60 N, forward stroke 687.6 N, demonstrating the cylinder’s powerful thrust.
• Moving Mass: 246 g, moving mass at 0 mm stroke 230 g, additional moving mass per 10 mm stroke 16 g.
• Product Weight: 685 g, basic weight at 0 mm stroke 661 g, additional weight per 10 mm stroke 24 g.

Installation and Interface:

• Installation Method: With accessories, providing flexible installation options.
• Pneumatic Interface: G1/4, standard interface, convenient for connection with other pneumatic components.

Materials and Compliance:

• RoHS Compliance: Compliant with environmental protection requirements, reducing the impact on the environment.
• Cover Material: Refined aluminum alloy, lightweight and corrosion-resistant.
• Seal Material: NBR and TPE-U(PU), providing good sealing performance and durability.
• Piston Rod Material: High-alloy steel, ensuring strength and wear resistance.
• Cylinder Material: High-alloy stainless steel, corrosion-resistant and high-temperature resistant.

The FESTO ESNU-40-10-P-A round cylinder, with its precise control, powerful thrust, flexible installation method, and outstanding corrosion resistance, is an ideal choice in the field of industrial automation. Whether in harsh industrial environments or with fine operation requirements, this cylinder can provide stable and reliable power support. Choose FESTO, choose the forefront of technology and the guarantee of quality.
