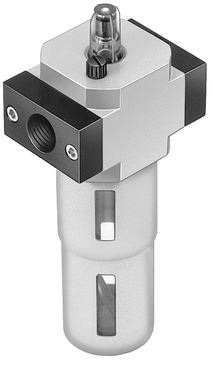

LOE-3/8-D-MINI FESTO Oil Mist Unit: A Compact Solution for Precise Lubrication

In industrial automation and machinery operation, lubrication of equipment is key to ensuring its long-term stable operation. FESTO, with its innovative technology and relentless pursuit of product performance, has introduced the LOE-3/8-D-MINI oil mist unit. This is a compact oil mist unit designed specifically for space-saving and weight reduction, offering high efficiency and precise lubrication performance that meets the strict maintenance requirements of modern industry.

Product Specifications and Features:

• Specification: Mini series, designed to save space and reduce weight.
• Installation Position: Vertical ±5°, adaptable to various installation environments.
• Structural Features: Standard proportioning oil mist unit ensures even distribution of oil mist.
• Maximum Oil Capacity: 45 cm³, meeting the lubrication needs for long-term operation.
• Protective Cover: Metal protective cover enhances durability and protection.
• Symbol: 00991532, facilitating quick identification and maintenance.

Performance Parameters:

• Working Pressure: 0 Mpa to 1.6 Mpa (0 bar to 16 bar, 0 psi to 232 psi), suitable for a wide range of working pressures.
• Minimum Flow Rate for Oil Mist Unit Function: 3 l/min, ensuring lubrication needs at low flow rates.
• Standard Rated Flow: 2700 l/min, standardized according to DIN 1343, ensuring efficient and stable lubrication effects.
• Working Medium: Compressed air, compliant with ISO 8573-1:2010 [7:4:4], suitable for various industrial environments.
• Medium Temperature: -10 °C to 60 °C, ensuring stable operation under extreme temperatures.

Corrosion Resistance and Environmental Adaptability:

• Corrosion Resistance Level: CRC 2, with medium corrosion resistance, suitable for various chemical environments.
• Paint Wetness Defect Material (PWIS) Compliance: VDMA24364-B1/B2-L, ensuring the quality of the product’s surface treatment.
• Storage Temperature: -10 °C to 60 °C, ensuring the stability of the product during storage.

Installation and Interfaces:

• Installation Method: With accessories, providing easy installation options.
• Pneumatic Interfaces: Air ports 1 and 2 are both G3/8, with standard interface design for easy connection with other pneumatic components.

Materials and Compliance:

• RoHS Compliance: Compliant with environmental regulations, reducing the impact on the environment.
• Bowl and Cover Material: PC (Polycarbonate), lightweight and highly impact-resistant.

The FESTO LOE-3/8-D-MINI oil mist unit, with its compact design, high-efficiency lubrication, and precise flow control, provides an ideal solution for the field of industrial automation. Whether for the maintenance of precision machinery or the long-term operation of heavy equipment, this oil mist unit can provide stable and reliable lubrication support. Choose FESTO for the forefront of technology and the guarantee of quality.
