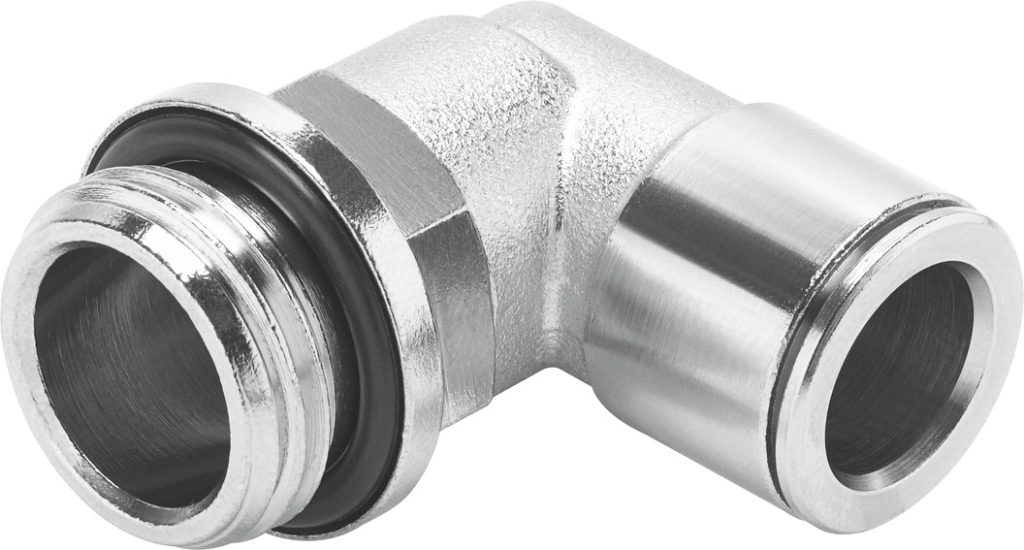

NPQM-L-G38-Q8-P10 FESTO L-Type Quick-Connect Threaded Fittings: A Reliable Connection Solution for Automation Systems

Introduction: In automation control systems, quick and secure connections are essential. The FESTO NPQM-L-G38-Q8-P10 L-Type Quick-Connect Threaded Fittings offer an exemplary design and performance, providing a standard and reliable connection solution for the industrial automation sector.

Product Specifications and Features:

• Specification: Standard type, meeting a wide range of industrial application needs.
• Nominal Diameter: 6 mm, suitable for precise pneumatic control systems.
• Seal Type on Screw-In Pin: Sealing ring, ensuring the sealing integrity of connections.
• Design: L-Type, offering flexible installation directions.
• Pack Specification: 10 units per pack, facilitating bulk purchasing and management.

Performance Parameters:

• Pushing and Pulling Principle: Simplifies the installation process and enhances connection efficiency.
• Working Pressure: Ensures stable system operation within a range of -0.095 Mpa to 1.6 Mpa (-0.95 bar to 16 bar, -13.775 psi to 232 psi).
• Working Medium: Compressed air, compliant with ISO 8573-1:2010, suitable for various industrial environments.
• Corrosion Resistance Level: CRC 1, with basic corrosion resistance capabilities.

Environmental Adaptability:

• Ambient Temperature: -20 °C to 70 °C, adaptable to different temperature working conditions.

Installation and Interfaces:

• Installation Method: Hexagonal external design, A/F 16 mm, facilitating quick installation and adjustment.
• Pneumatic Interfaces: Air port 1 with external thread G3/8, air port 2 suitable for air hose outer diameter of 8 mm, offering diverse connection options.

Materials and Compliance:

• RoHS Compliance: In line with environmental regulations, reducing environmental impact.
• Housing Material: Nickel-plated brass, providing good corrosion resistance and aesthetics.
• Air Hose Seal Material: NBR, ensuring sealing performance and durability.

The FESTO NPQM-L-G38-Q8-P10 L-Type Quick-Connect Threaded Fittings, with their efficient and reliable connection performance, provide strong support for automation control systems. Whether in precise pneumatic control or harsh industrial environments, these fittings ensure stable operation and long-term reliability of the system. Choose FESTO for the forefront of technology and the guarantee of quality.
