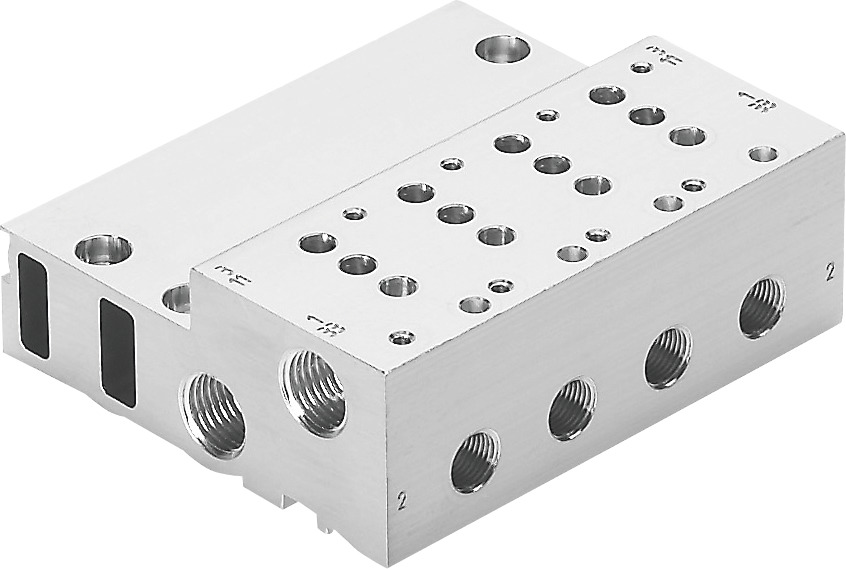

MHA3-PR10-3-1/8 FESTO Pneumatic Manifold: Exceptional Corrosion Resistance and Precise Control for Pneumatic Systems

In automated control systems, the pneumatic manifold is a key component for the precise layout and connection of pneumatic components. The FESTO MHA3-PR10-3-1/8 pneumatic manifold, with its superior corrosion resistance and diverse mounting options, provides a solid foundation for building an efficient and reliable pneumatic control system.

Product Overview:

The FESTO MHA3-PR10-3-1/8 pneumatic manifold is designed for demanding industrial environments and features the following core characteristics:

1. Maximum Valve Position Quantity:
   • Supports up to 10 valve positions to meet the needs of complex systems.
2. Medium Corrosion Resistance:
   • Rated at CRC 2 for medium corrosion resistance, suitable for various chemical environments.
3. PWIS Compliance:
   • Compliant with the VDMA24364-B1/B2-L standard, ensuring product reliability in humid conditions.
4. Flexible Mounting Methods:
   • The base can be mounted through holes and comes with H-type rails, while the valve is mounted through internal threads, providing stable support and precise positioning.
5. Diversified Pneumatic Interfaces:
   • Offers various pneumatic interface options such as G1/4 and internal thread G1/8, facilitating connection with different pneumatic components.

Detailed Product Features:

• Corrosion Resistance Level: With a medium corrosion resistance level of CRC 2, suitable for a variety of chemical media.
• PWIS Compliance: Meets the VDMA24364-B1/B2-L standard, ensuring performance in humid environments.
• Base Material: Made of refined aluminum alloy, lightweight and sturdy, offering excellent durability.
• Mounting Method: The base is mounted through holes, with H-type rails for quick positioning and stable support; the valve is mounted through internal threads to ensure a tight and stable connection.
• Pneumatic Interface Specifications: Provides a G1/4 interface for port 1/33 and an internal thread G1/8 for port 2, as well as a G1/4 for port 3/11, catering to different connection needs.

Application Scenarios:

• Suitable for various industrial applications such as automated machinery, pneumatic control systems, medical equipment, etc.
• Particularly suitable for applications in chemical processing, pharmaceuticals, and other environments with high requirements for corrosion resistance.

The FESTO MHA3-PR10-3-1/8 pneumatic manifold, with its exceptional corrosion resistance, flexible mounting options, and diversified pneumatic interfaces, offers an efficient and reliable solution for industrial automation. Choosing FESTO means choosing the cutting edge of technology and a guarantee of quality.
