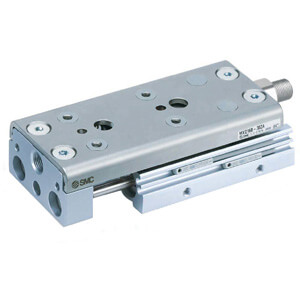

MXQ8-75AS-M9NL SMC Pneumatic Slide Table: Integrated Design for High Rigidity and Precision

In the fields of automation and precision manufacturing, pneumatic slide tables are highly favored for their efficient and flexible operation. The SMC MXQ8-75AS-M9NL pneumatic slide table, with its integrated guide rail and slide design, provides a solution for industrial automation that combines high rigidity with high precision.

Product Overview:

The SMC MXQ8-75AS-M9NL pneumatic slide table is an automation component that integrates multiple advantages, featuring the following core characteristics:

1. Integrated Guide Rail and Slide Design:
   • A compact structural design that saves space while ensuring overall stability.
2. Recirculating Linear Guide Rail:
   • Equipped with a recirculating linear guide rail to ensure high rigidity and precision in motion.
3. Diversified Options:
   • Offers a variety of cylinder diameters, thread types, symmetrical shapes, and stroke lengths to meet different application needs.
4. Function Options:
   • Standard function configuration, with adjustable options for different front-end limiters and magnetic switch models.
5. Magnetic Switch Model:
   • Model M9NL, contactless magnetic switch with direct wiring, indicator light, 3-wire (NPN), horizontal lead-out, and cable length of 3m, suitable for voltages: DC5V, 12V, 24V (DC4.5~28V).

Detailed Product Features:

• Cylinder Diameter: 8mm, providing stable cylinder thrust.
• Thread Type: M thread and Rc, adaptable to various installation requirements.
• Symmetrical Shape: Standard design ensures the symmetry and balance of the cylinder.
• Stroke Length: 75mm, meeting the automation needs for longer strokes.
• Adjustable Option: Model AS, with a rubber limiter at the front end, providing additional adjustment and buffering functions.
• Number of Magnetic Switches: Optional two or none, customized according to the complexity of the automation system.
• Customized Specification: Standard customization specification ensures the universality and reliability of the product.

Application Scenarios:

• Suitable for various industrial applications such as automated machinery, precision positioning systems, and robotic technology.
• Particularly suitable for automated production lines that require high precision and stability.

The SMC MXQ8-75AS-M9NL pneumatic slide table, with its integrated design, high rigidity, and precision, provides a powerful actuator for the field of industrial automation. Choosing SMC means choosing the forefront of technology and a guarantee of quality.
