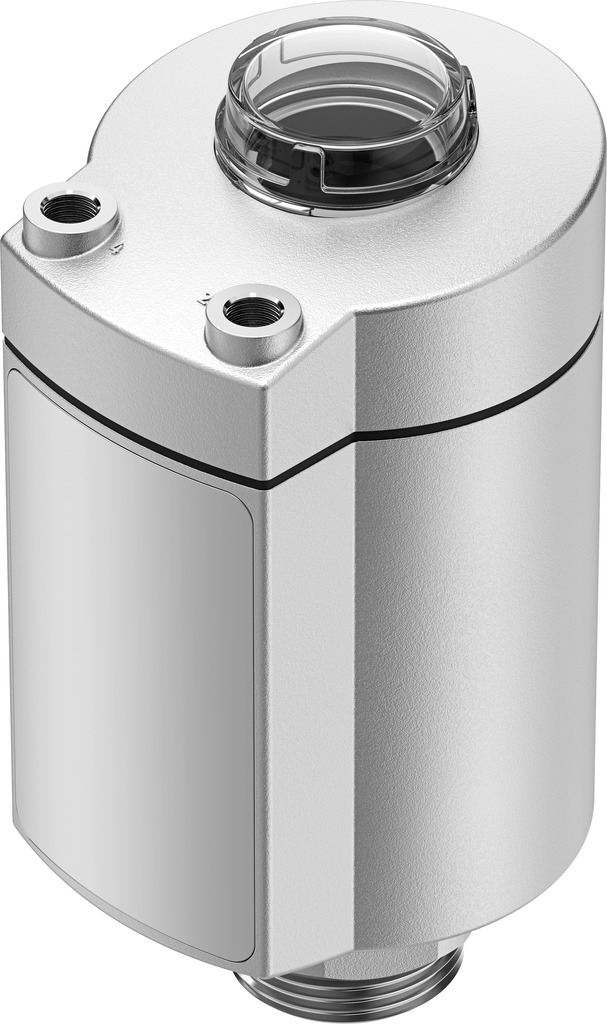

DFPK-75-20-D-V4 FESTO Piston Drive Unit: High-Performance Pneumatic Control

In the field of industrial automation, pneumatic drive units are key components for achieving precise control and efficient operation. The FESTO DFPK-75-20-D-V4 Piston Drive Unit offers reliable power support for various automation applications with its outstanding performance and strict industrial standards.

Product Features

• Valve Actuator Specification: Size 75, providing a stable and powerful driving force.
• Stroke: 20 mm, meeting the needs of precision control.
• Mounting Position: Optional, adaptable to different installation environments.
• Position Detection: Via mechanical indicator for intuitive position feedback.

Technical Specifications

• Control Function: Double-acting, offering bidirectional control capabilities.
• Working Pressure Range: 0.5 Mpa to 1 Mpa, 5 bar to 10 bar, 72.5 psi to 145 psi, suitable for various pressure requirements.
• CE Certification: Compliant with EU safety standards and the ATEX explosion protection directive.

Explosion Protection Features

• ATEX and UKEX Certification: Suitable for use in Zone 1 and Zone 2 explosive environments, ensuring safe use in potentially explosive environments.
• Gas Explosion Protection Type: Ex h IIC T6…T4 Gb, applicable to various gas environments.
• Dust Explosion Protection Type: Ex h IIIC T80°C…T120°C Db, offering high-standard dust protection.

Environmental Adaptability

• Explosion-Proof Ambient Temperature: 0°C to +60°C, suitable for a wide range of ambient temperatures.
• Working Medium: Compatible with compressed air that meets ISO 8573-1:2010 standard.

Materials and Workmanship

• RoHS Compliance: Materials used are in line with environmental protection requirements.
• Cover and Housing Material: Die-cast stainless steel, offering high strength and corrosion resistance.
• Seal Material: FPM, ensuring good sealing performance.
• Piston Rod Material: High-alloy stainless steel, providing excellent wear resistance and stability.

Safety and Protection

• Protection Level: IP65, IP67, IP69K, offering different levels of dust and water protection.
• Ambient Temperature: 0°C to 60°C, ensuring stable operation in various temperature environments.

Application Scenarios

The DFPK-75-20-D-V4 Piston Drive Unit is suitable for various industrial applications such as automated machinery, pneumatic control systems, and chemical equipment, especially in situations requiring precise control and high safety standards.

With its high-performance pneumatic control, strict explosion protection standards, and excellent environmental adaptability, the FESTO DFPK-75-20-D-V4 Piston Drive Unit has become an ideal driving component in the field of industrial automation. It provides stable and reliable performance in both standard industrial environments and special application requirements.
