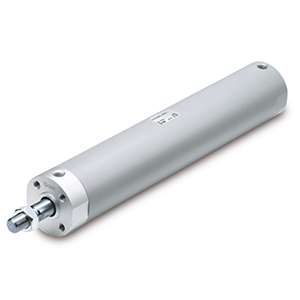

CDG1BN20-25Z-A93L SMC Cylinder: Efficient and Easy-to-Operate Automation Actuator

In the field of automated control systems, the performance of cylinders directly affects the overall efficiency of the system. The CDG1BN20-25Z-A93L cylinder introduced by SMC, with its standardized design and ease of operation, provides users with a reliable and efficient actuator component.

Product Features

• Standardized Threading on the Piston Rod End: Ensures compatibility with a variety of accessories and easy installation.
• Improved Operability of the Magnetic Switch: The position is easy to adjust, enhancing the flexibility of using the magnetic switch.
• Addition of Thread Holes for Earless Shaft Installation in the Basic Model: Expands the installation options.
• Model Numbers Set for Piston Rod and Swing Base Mounting Parts: Saves time when ordering cylinders and mounting parts separately, improving procurement efficiency.
• Built-in Magnetic Switch: Offers a variety of models to meet different control requirements.

Technical Specifications

• Built-in Magnetic Ring: Option D, provides a built-in magnetic ring for enhanced operational feedback.
• Mounting Type: Type B, basic model, suitable for various installation environments.
• Cylinder Diameter: 20mm, suitable for applications requiring precise control.
• Port Thread Type: Pad buffer Rc, air buffer M5X0.8/Rc, adapting to different buffering needs.
• Cylinder Stroke: 25mm, meeting the demand for short-stroke automation.
• Piston Rod Thread Shape: External thread on the piston rod, convenient for connecting with other components.
• Magnetic Switch Model: A93L, a contact magnetic switch with an indicator light, 2-wire style, lateral exit, cable length 3m, suitable for voltages DC24V and AC100V.
• Number of Magnetic Switches: Can be customized with two or none, based on control requirements.

Options

• Form: Type N, rubber buffer, to reduce impact and vibration.
• Custom Specification: X2141, includes a blockage detector, enhancing system monitoring capabilities.

Application Fields

The SMC CDG1BN20-25Z-A93L cylinder is suitable for various industrial automation fields, especially in automated equipment that requires high precision and reliability.

The SMC CDG1BN20-25Z-A93L cylinder, with its standardized design, ease of operation, built-in magnetic switch, and flexible installation options, has become an ideal choice of cylinder in the field of industrial automation. Choose SMC for professionalism and trust.
