MVH-5-1/4-B FESTO Solenoid Valve: Efficient Control, Precise Operation

In automated control systems, solenoid valves are key components for achieving precise control of pneumatic elements. The MVH-5-1/4-B solenoid valve from FESTO, with its efficient actuation method and accurate operational performance, provides a reliable control solution for industrial automation.

Product Overview

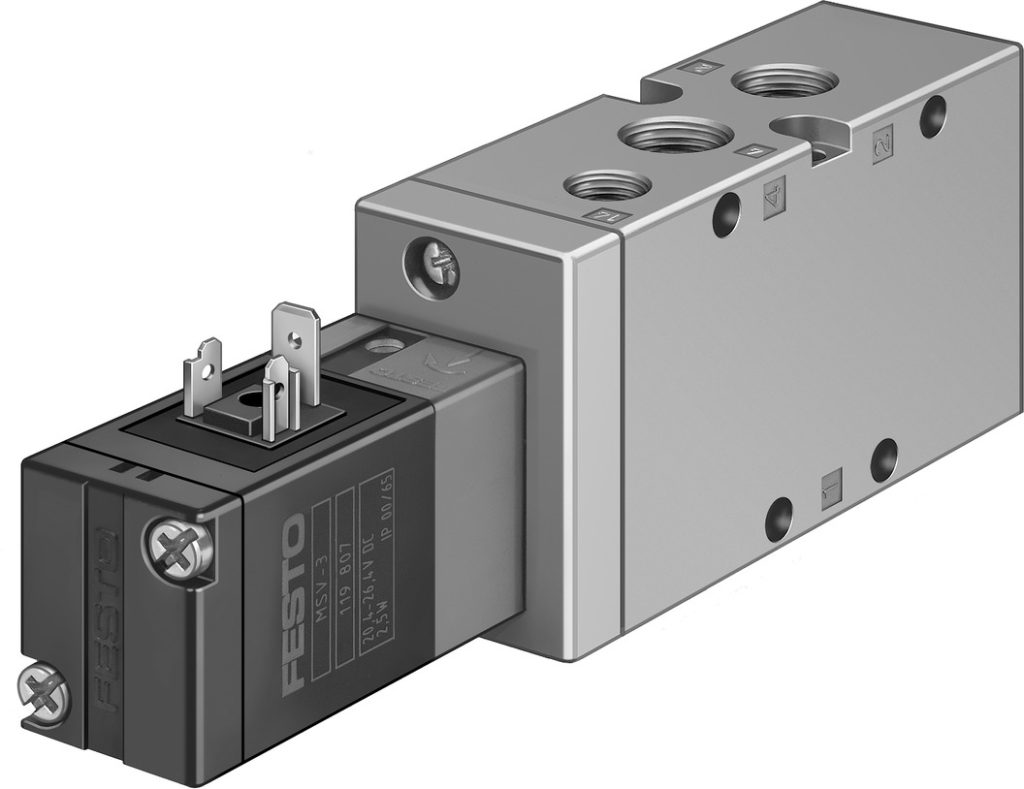

The MVH-5-1/4-B solenoid valve is a high-performance solenoid valve designed by FESTO to meet the demands of automated control. It features an electrically controlled actuation with a two-way five-port, single-stable function, suitable for a variety of pneumatic control systems.

Product Features

High Flow Design

• The standard rated flow rate is up to 1300 liters per minute, standardized according to DIN 1343, ensuring efficient pneumatic control.

Wide Working Pressure Range

• The working pressure range is from 0.2 Mpa to 1 Mpa, or 2 bar to 10 bar, adapting to various pressure environments.

Fast Response

• The maximum switching frequency is 3 Hz, with a closing time of 36 ms and an opening time of 15 ms, ensuring rapid response speeds.

Precise Control Performance

• The maximum positive test pulse for a 0 signal is 2200 microseconds, and the maximum negative test pulse for a signal of 1 is 3700 microseconds, guaranteeing precise control.

Corrosion-Resistant and Environmentally Friendly Materials

• The corrosion resistance level is CRC 1, with low corrosion resistance capabilities. All materials comply with RoHS standards, ensuring environmental friendliness and safety.

Technical Parameters

• Valve Function: Two-way five-port, single-stable, providing stable control performance.
• Actuation Method: Electrically controlled, with rapid response.
• Width: 32 mm, a compact design suitable for various installation environments.
• Working Air Port: G1/4, a standard interface for easy connection.
• Reset Type: Spring return, ensuring the stability of the valve.
• Nominal Diameter: 7 mm, suitable for corresponding pneumatic systems.
• Exhaust Function: With throttling option, providing flexible control.
• Sealing Principle: Soft sealing, enhancing sealing performance.
• Manual Operating Device: Button type, convenient for manual operation.
• Pilot Type: Pilot actuation, improving the precision of control.
• Solenoid Characteristics: Consuming 2.5 W at 24 V DC, allowing a voltage fluctuation of +/- 10%.
• Working Medium: Compressed air, compliant with ISO 8573-1:2010 standards.
• Storage Temperature: -40°C to 60°C, adapting to extreme temperature conditions.
• Medium Temperature: -5°C to 50°C, ensuring stable operation at different temperatures.
• Ambient Temperature: -5°C to 50°C, ensuring performance under various environmental conditions.
• Product Weight: 360 g, lightweight and easy to install.

Application Fields

The MVH-5-1/4-B solenoid valve is widely used in automated machinery, pneumatic control systems, medical equipment, laboratory equipment, and other fields, especially in automated control systems that require high precision and stability.

FESTO’s MVH-5-1/4-B solenoid valve, with its characteristics of efficient control, precise operation, and rapid response, provides an ideal choice for industrial automation. Choose FESTO for a reliable, efficient, and precise automation control partner.
