CXSM20-75-Y59B SMC Twin Cylinder: The Combination of Precision Guidance and High-Efficiency Performance

In automated production lines, the precision and efficiency of pick-and-place handling are crucial. The CXSM20-75-Y59B Twin Cylinder from SMC, with its high-precision guidance function and slim design, provides an ideal solution for automated equipment. This cylinder not only enhances production efficiency but also ensures the accuracy of operations, meeting the needs of high-precision automation applications.

Product Overview

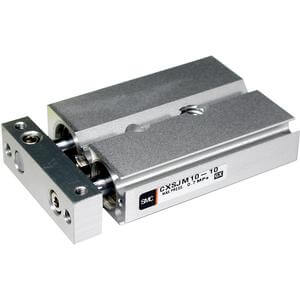

The SMC CXSM20-75-Y59B Twin Cylinder is designed specifically for pick-and-place handling with high-precision guidance functions. It offers users an efficient and reliable option for automated control with its precise guidance and compact design. Here are the main features of the product:

• High-Precision Guidance Function: Ensures the accuracy and stability of the cylinder during motion.
• Slim Design: Saves space, facilitating installation and layout in limited spaces.

Technical Specifications

• Type of Bearing: M, sliding bearing, providing smooth motion and a longer service life.
• Cylinder Diameter: 20mm, suitable for occasions requiring fine control.
• Thread Type of Port: M thread or Rc1/8, convenient for connecting with various pneumatic components.
• Cylinder Stroke: 75mm, offering an ample stroke range to meet different application needs.
• Magnetic Switch Model: Y59B, contactless magnetic switch, direct wire-out style, with indicator light, 2-wire type, horizontally wired, wire length 0.5m, applicable voltage: DC24V (DC10~28V).
• Number of Magnetic Switches: 2 or none, depending on requirements.

Application Scenarios

The SMC CXSM20-75-Y59B Twin Cylinder is suitable for a variety of automation applications, including but not limited to:

• Precision Assembly: Used on precision assembly lines for accurately picking and placing small parts.
• Robotic Arms: As part of a robotic arm, used for executing precise positioning and manipulation.
• Automated Inspection: In automated inspection equipment, used for accurately controlling the movement of test pieces.

The SMC CXSM20-75-Y59B Twin Cylinder, with its high-precision guidance function, slim design, and reliable performance, provides an efficient pick-and-place handling solution for automated production lines. Whether in precision assembly, robotic arm operations, or automated inspection fields, it offers stable and accurate control. Choosing SMC means choosing innovation, quality, and performance.
