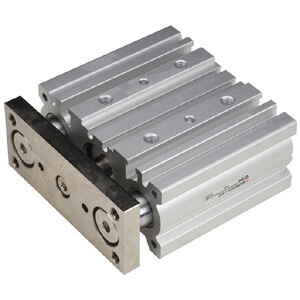

MGPM32-50Z-M9B-XB13 SMC Guided Thin-Type Cylinder: An Innovative Work of Lightweight and Space Optimization

In the fields of automation and mechanical engineering, the pursuit of lightweight and space efficiency for equipment components has never ceased. SMC’s MGPM32-50Z-M9B-XB13 Guided Thin-Type Cylinder, with its innovative design and excellent performance, provides users with an efficient and space-saving pneumatic solution. This article will detail the features and advantages of this cylinder.

Lightweight Design: Up to 24% Weight Reduction

The MGPM32-50Z-M9B-XB13 cylinder achieves significant weight reduction through the shortening of the guide rod and optimization of the end plate thickness, with a maximum reduction of up to 24%. This lightweight design not only reduces energy consumption but also improves the response speed and flexibility of the equipment.

Space Saving: Guide Rod Shortened by 22 mm

The design of the guide rod in this cylinder is shortened by up to 22 mm, reducing the amount of machining required for clearance holes during cylinder installation, thus saving valuable installation space. This is particularly important for applications with limited space.

Circular Magnetic Switch: Direct Installation Without a Spacer

The MGPM32-50Z-M9B-XB13 cylinder is equipped with a circular magnetic switch, which allows for direct installation on the cylinder without the need for a spacer. This not only simplifies the installation process but also enhances the overall aesthetics and durability.

Optional Information: Customization to Meet Specific Needs

Users can choose different configurations according to their needs, such as a sliding bearing, a cylinder diameter of 32mm, and a cylinder stroke of 50mm. In addition, the type of port thread can be chosen as M5X0.8(Φ12-16) or Rc(Φ20-100). The magnetic switch model is M9B, which is a contactless magnetic switch, directly wired, with an indicator light, 2-wire type, horizontally led out, with a cable length of 0.5m, and a suitable voltage of DC24V(DC10~28V).

Custom Specification: Low-Speed Cylinder (5～50mm/s)

The MGPM32-50Z-M9B-XB13 cylinder also offers a custom specification XB13, which is a low-speed cylinder with a speed range of 5～50mm/s. This feature allows the cylinder to adapt to applications that require precise speed control.

SMC’s MGPM32-50Z-M9B-XB13 Guided Thin-Type Cylinder, with its lightweight design, space-saving advantages, directly installable magnetic switch, and a variety of options, provides a high-performance, efficient solution for industrial automation and pneumatic systems. Whether in applications that require weight reduction, space saving, or precise control, the MGPM32-50Z-M9B-XB13 cylinder is your ideal choice.
