NPHS-D6-P-G18 FESTO Quick-Connect Plug: Efficient Connection, Worry-Free Operation

In the modern industrial automation sector, fast and reliable connection technology is crucial for enhancing production efficiency and ensuring system stability. FESTO’s NPHS-D6-P-G18 quick-connect plug meets this need with its superior design and performance, offering users an efficient and convenient connection solution.

Product Overview

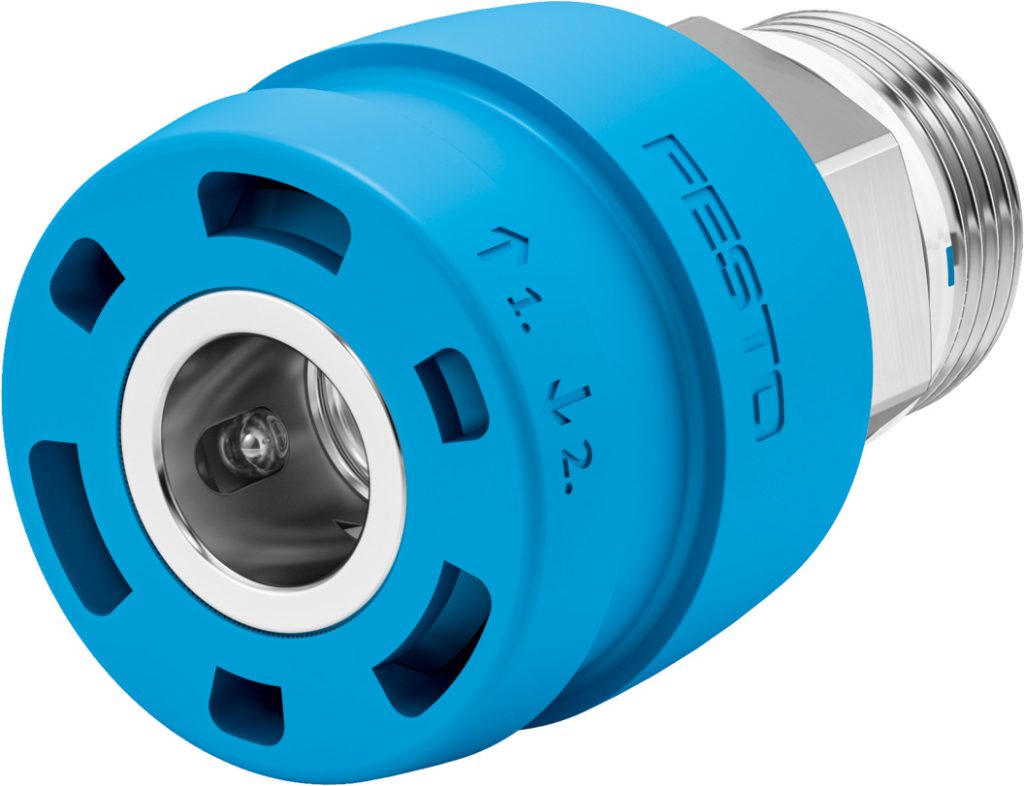

The FESTO NPHS-D6-P-G18 is a quick-connect plug specifically designed for compressed air systems, featuring a 5mm nominal diameter and capable of operating in an ambient temperature range of -10°C to 60°C. This plug has a working pressure range of -0.095 Mpa to 1.2 Mpa (-0.95 bar to 12 bar, -13.775 psi to 174 psi), ensuring its applicability under various working conditions.

Technical Specifications

• Working Pressure: Throughout the complete temperature range, the NPHS-D6-P-G18 can withstand working pressures from -0.095 Mpa to 1.2 Mpa, providing a broad working range.
• Standard Rated Flow: According to DIN 1343 standardization, its flow rate ranges from 875 l/min to 1050 l/min, while according to ISO 8778 standardization, the flow rate is 948.5 l/min to 1138.2 l/min, ensuring efficient fluid transfer.
• Working Medium: Suitable for compressed air compliant with ISO 8573-1:2010 [7:-:-] standard, and can work with lubricating media, enhancing the durability and maintainability of the system.
• Corrosion Resistance Class: CRC class 1 indicates low corrosion resistance, suitable for general industrial environments.
• Paint Wetness Defect Material (PWIS) Compliance: Compliant with VDMA24364-B1/B2-L standard, ensuring the product’s performance and safety in specific environments.

Materials and Design

• Air Interface: Air port 1 features an external thread G1/8, facilitating quick connection and disconnection.
• Material Description: The product complies with RoHS standards, ensuring environmental protection and health.
• Seal Material: Made of NBR, providing good sealing performance.
• Spring Material: High-alloy stainless steel is used, enhancing the durability and corrosion resistance of the spring.
• Housing Material: Nickel-plated brass, improving the product’s corrosion resistance and aesthetics.
• Thread Seal Material: PA66-GF30/TPE-U material, ensuring the sealing and reliability of threaded connections.
• Valve Body Material: Brass, offering good mechanical properties and corrosion resistance.

Application Fields

The FESTO NPHS-D6-P-G18 quick-connect plug is suitable for various industrial automation applications, including but not limited to:

• Machinery manufacturing
• Automotive production lines
• Food and beverage processing
• Chemical and pharmaceutical industries

With its efficient connection performance, wide working pressure range, and superior material design, the FESTO NPHS-D6-P-G18 quick-connect plug has become an ideal choice in the field of industrial automation. Whether in harsh industrial environments or situations requiring quick operation, the NPHS-D6-P-G18 provides stable and reliable connections, making it the preferred product for upgrading and maintaining your automation system.
