VUWS-L20-M32C-E-G18 FESTO Pneumatic Control Valve: High-Performance Pneumatic Control with Precision and Reliability

In the field of automation control systems, pneumatic control valves play a crucial role, determining the response speed and control accuracy of pneumatic systems. FESTO’s VUWS-L20-M32C-E-G18 pneumatic control valve offers an excellent solution for industrial automation with its high-efficiency pneumatic performance and reliable control characteristics. Here is a detailed introduction to this product.

Product Overview

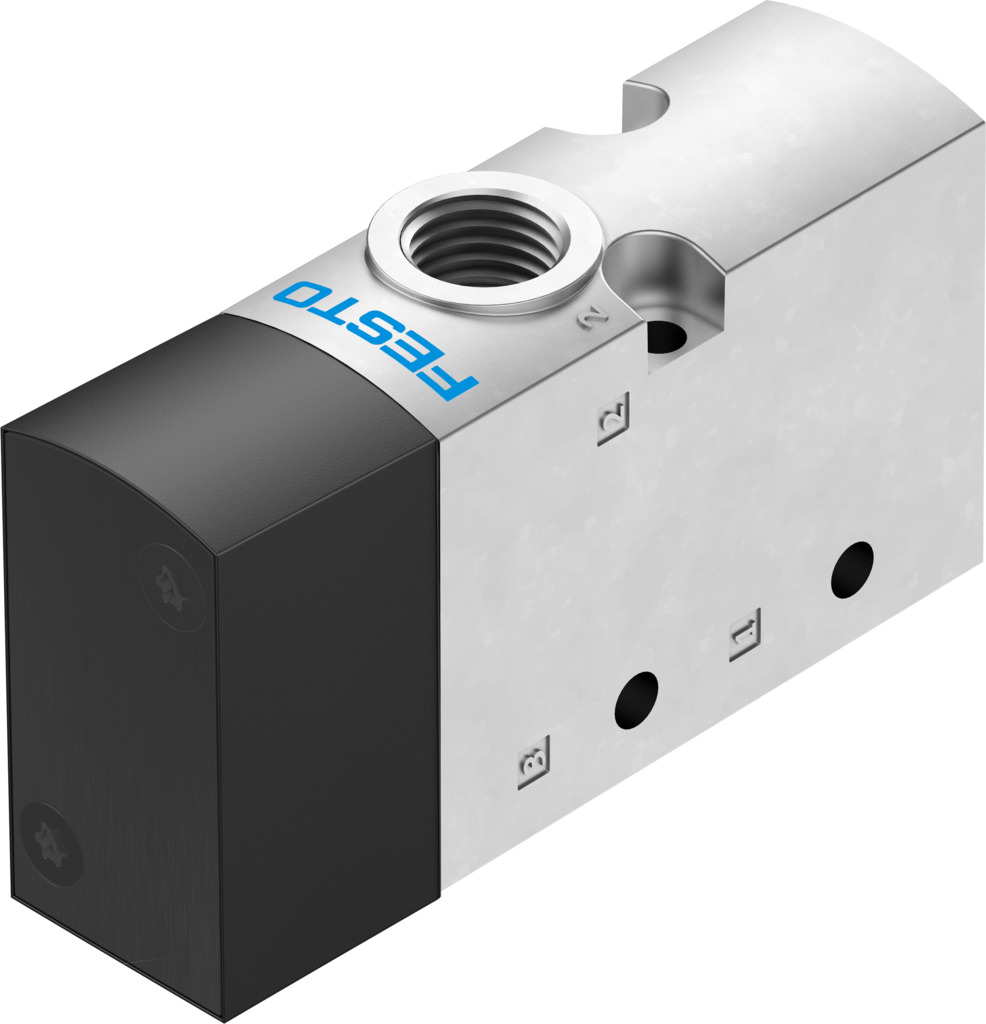

The FESTO VUWS-L20-M32C-E-G18 is a two-position three-way normally closed single-stable pneumatic control valve, designed for pneumatic control systems that require fast response and high reliability. Its compact size and efficient performance make it an ideal choice in automation systems.

Key Features

1. High-Efficiency Pneumatic Performance: With a standard rated flow rate up to 700 l/min, it ensures rapid response of the system.
2. Wide Operating Pressure Range: The operating pressure range is from -0.09 Mpa to 1 Mpa, equivalent to -0.9 bar to 10 bar, adapting to various working conditions.
3. Piston Gate Valve Structure: The piston gate valve design provides excellent sealing performance and stable control.
4. Pneumatic Spring Return: The return type is pneumatic spring, ensuring the valve’s quick and accurate response.
5. Multiple Certifications: Including c UL us certification (OL), compliant with ATEX zones 1, 2, 21, and 22 explosion-proof requirements, ensuring the product’s safety and reliability.
6. Moderate Corrosion Resistance: Corrosion resistance rating is CRC 2, suitable for use in various chemical environments.
7. Variety of Material Options: The housing material is die-cast aluminum with coating, the sealing materials are HNBR and NBR, the piston slide valve material is refined aluminum alloy, and the screw material is galvanized steel, all in compliance with RoHS standards.
8. Vibration and Impact Resistance: Passed transportation application tests and impact tests, in compliance with FN 942017-4, EN 60068-2-6, and EN 60068-2-27 standards.
9. Various Installation Methods: Supports installation on pneumatic circuit boards or with through-holes, providing flexible installation options.

Application Scenarios

The FESTO VUWS-L20-M32C-E-G18 pneumatic control valve is suitable for a variety of industrial automation applications, including but not limited to:

• Mechanical arm control
• Automated production lines
• Packaging machinery
• Robotics technology
• Food processing equipment

The FESTO VUWS-L20-M32C-E-G18 pneumatic control valve, with its high-performance pneumatic control, precise and reliable operation, and robust design, has become an ideal choice in the field of industrial automation. Whether in situations requiring rapid response or in harsh industrial environments, this pneumatic control valve provides stable and reliable performance.
