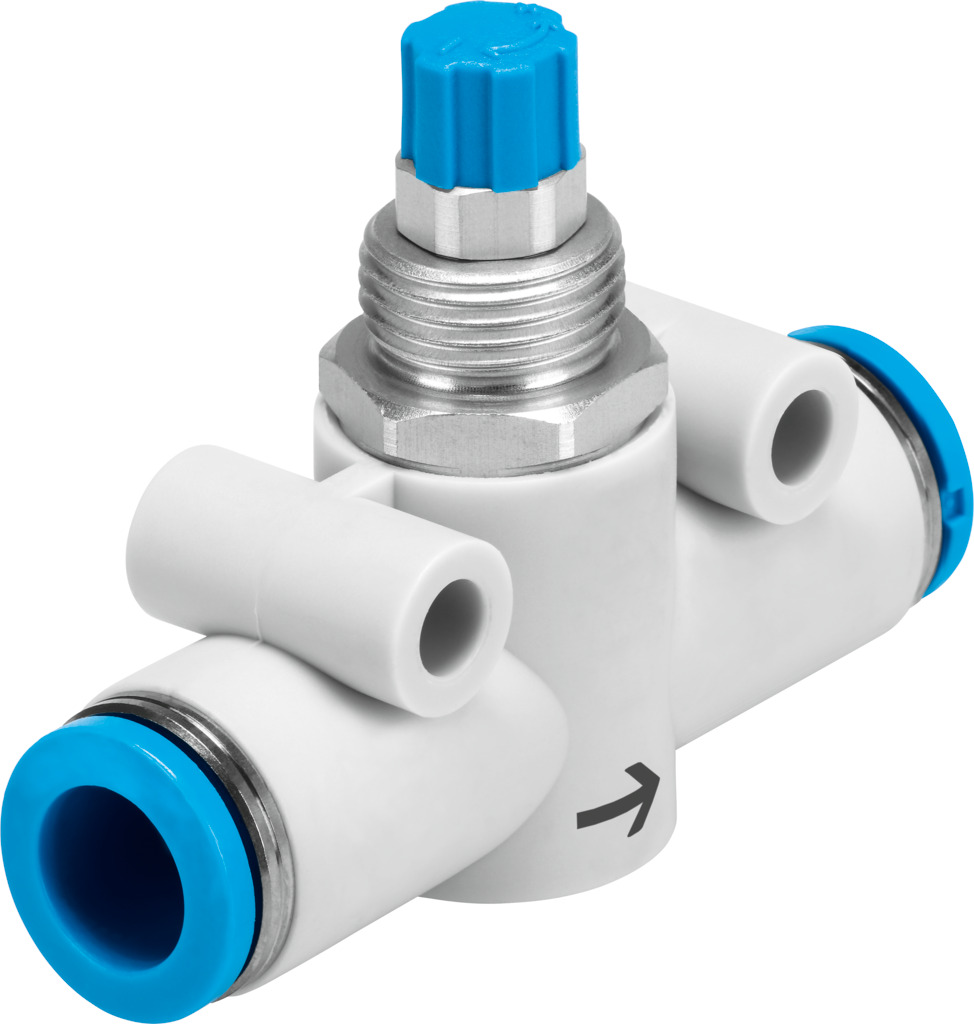

GR-QS-8 FESTO Single-acting Throttle Valve: Precise Regulation for Efficient Control

In automation control systems, the single-acting throttle valve plays a crucial role in achieving precise gas flow control. The GR-QS-8 single-acting throttle valve from FESTO, with its efficient regulation capabilities and reliable structural design, offers an ideal solution for gas flow control.

Product Features

1. Single-acting Throttle Function: Equipped with a single-acting throttle function to precisely control the gas flow rate and volume.
2. Dual QS-8 Air Interfaces: Provides two QS-8 air interfaces for easy connection and system expansion.
3. Knurled Screw Adjustment Element: Features a knurled screw for adjustment, offering convenient operation and precise regulation.
4. Flexible Installation Options: Supports panel mounting and installation with through-holes, catering to various installation requirements.
5. High Flow Control: Standard nominal flow rate of 265 L/min in the control direction and 500 L/min in the blocking direction.
6. Wide Pressure Range: The working pressure range is from 0.2 bar to 10 bar, suitable for various pressure environments.
7. Reinforced Polyamide Housing: Made of reinforced polyamide, providing excellent mechanical strength and temperature resistance.
8. Explosion-proof Certification: Complies with ATEX standards, suitable for use in zones 1, 2, 21, and 22.
9. Moderate Corrosion Resistance: Compliant with VDMA24364-B1/B2-L standard for paint wetness defect substance (PWIS), suitable for various media.

Application Scenarios

The FESTO GR-QS-8 single-acting throttle valve is suitable for various industrial automation and pneumatic control fields, including but not limited to:

• Automated Production Lines: Control gas flow in automated production lines to increase production efficiency.
• Robotics: Achieve precise gas control in robotic applications.
• Laboratory Equipment: Precisely regulate gas flow in laboratory equipment to ensure the accuracy of experiments.
• Medical Equipment: Provide a stable gas supply in medical devices.

The FESTO GR-QS-8 single-acting throttle valve, with its precise adjustment capabilities, efficient control performance, and reliable durability, offers an ideal choice for industrial automation and pneumatic control systems. Whether it’s improving operational efficiency, ensuring system safety, or optimizing control performance, this throttle valve is a choice worth considering. If you are looking for a high-performance single-acting throttle valve, the GR-QS-8 is undoubtedly an ideal choice.
