CDRQ2BWP15-90-XC15 Rotary Actuator: 90° Precision Rotation in Ultra-Slim Design!
2025-07-15

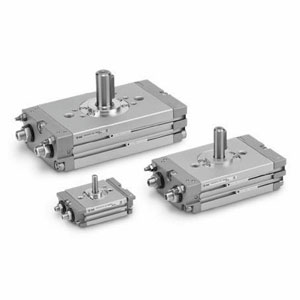

Product Introduction: CRQ2 Series Compact Rack-and-Pinion Rotary Actuator
1. Key Advantages
🔄 Precise 90° Rotation: ±0.1° repeat positioning accuracy
📏 Ultra-Slim 15mm Profile: Saves 50% installation space
⚡ Lightning-Fast: Completes 90° swing in 0.3 seconds
🛡️ Extended Lifespan: Special gear treatment ensures 3 million cycles
🔧 Versatile Mounting: Multiple flange options for flexible integration
2. Breakthrough Technologies
- Hardened Rack & Pinion: 70% less wear with quenched surface treatment
- Dual Cushioning: Adjustable air + elastic cushioning (80% impact reduction)
- Smart Modularity: Quick-install sensor compatibility
- Dust-Resistant: IP54 rating for harsh environments
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Bore Size | 15mm |
| Rotation Angle | 90° (Customizable 0-190°) |
| Working Pressure | 0.1–1.0 MPa |
| Max Speed | 100 RPM |
| Temp. Range | -10°C to 60°C |
| Torque Output | 0.15 N·m |
| Mounting Options | Side/End Flange |
4. Typical Applications
🤖 Robotics: Compact wrist rotation for lightweight arms
📱 3C Electronics: Small component flipping & positioning
🛠️ Automation: Index table drives in assembly systems
🔌 Electrical Testing: Switch contact verification
📦 Packaging: Product orientation adjustment
5. Customer Proof
*”In smartphone camera module assembly, CDRQ2BWP15-90-XC15 boosted our yield by 15% through precise positioning.”* — Electronics Manufacturing Engineer
“The 15mm thickness perfectly solved our space constraints!” — Automation Equipment Designer
📌 Why It Stands Out
This actuator redefines compact motion by combining ultra-thin design with precision gear-driven rotation. Its space-saving innovation delivers high accuracy without compromise, making it ideal for space-critical automation.
🔑 Core Innovation:
“Where every millimeter matters—delivering torque in a sliver of space!“ ⚙️📐
