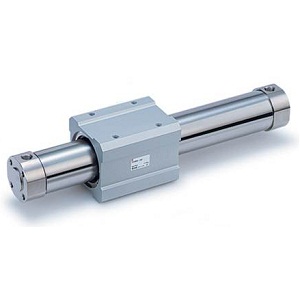

CY1SG32-700BZ: Long‑Stroke, High Efficiency, Rodless Anti‑Rotation! Magnetic Coupled Heavy‑Duty Rodless Cylinder Empowers Long‑Distance, High‑Load Driving

In applications requiring long strokes, high loads, and limited installation space—such as automated warehousing, large‑scale material handling, and door/window actuation—traditional rod‑type cylinders with overly long piston rods that are prone to bending often fail to meet requirements. The CY1SG32-700BZ is a heavy‑duty magnetic coupled rodless cylinder. It drives an external slider via powerful magnetic coupling force, achieving linear motion without a piston rod. With its ultra‑long stroke, high rigidity, high load capacity, and space‑saving excellence, it stands as one of the ultimate solutions for long‑distance linear driving.Core Product AdvantagesUltra‑Long Stroke, Extreme Space SavingWith a stroke up to 700 mm and a rodless design, its overall installed length for the same stroke is about 50% shorter than that of traditional cylinders. A true master of space optimization, it perfectly resolves the conflict between long stroke and short installation length.High Rigidity Anti‑Rotation & High Load CapacityThe slider incorporates ultra‑rigid linear guides and an anti‑rotation mechanism, capable of withstanding substantial radial forces, torque, and lateral loads. It effectively prevents slider rotation and wobbling, ensures high repeat positioning accuracy (up to ±0.05 mm), and can directly drive heavy loads.Powerful Magnetic Coupling, Contact‑Free TransmissionHigh‑performance neodymium‑iron‑boron permanent magnets are used for coupling, achieving non‑contact forceful transmission between the internal piston and external slider. No dynamic seals, zero external leakage, minimal friction, smooth motion, and extremely long service life.Heavy‑Duty Cushioning ProtectionBoth ends are equipped with large‑capacity adjustable hydraulic shock absorbers, specifically designed to absorb the substantial impact energy generated at the ends under long strokes and high loads, protecting cylinder structure and ensuring smooth, quiet operation.Intelligent Position DetectionThe cylinder body is provided with a full‑length magnetic switch groove, allowing installation of multiple magnetic switches for precise multi‑point position detection and motion control across the ultra‑long stroke.Typical Application ScenariosUltra‑Long‑Distance Material Transfer: Long‑distance transfer, lifting, and positioning of heavy workpieces on automated production lines and large‑scale assembly lines.Large Doors, Windows & Lift Gates: Driving factory large sliding doors, warehouse roll‑up doors, and cleanroom airtight doors.Heavy‑Duty Linear Modules: Serving as high‑load, long‑stroke precision linear motion platforms for inspection, spraying, and handling.Packaging & Logistics Equipment: Long‑distance drive units for large‑scale film wrapping machines, palletizers, and sorting machines.Technical Parameters (Typical Values)Bore Size: 32 mmStroke: 700 mmOperating Pressure: 0.1 – 0.7 MPaLoad Capacity: Up to several tens of kilograms (refer to manual)Repeat Positioning Accuracy: ±0.05 mm (typical)Cushioning Method: Adjustable hydraulic shock absorbers at both endsOperating Temperature: ‑10 °C to +60 °C (limited by magnet material)Closing SummaryThe CY1SG32-700BZ magnetic coupled rodless cylinder is an “engineering exemplar” for long‑stroke, high‑load, compact‑space applications. It perfectly combines unparalleled space saving, robust load capacity, and precise motion control, delivering an efficient, reliable, and space‑saving long‑distance linear drive solution for high‑end automated equipment. It is a powerful tool for overcoming complex spatial and motion challenges.Choosing CY1SG32-700BZ means choosing the ultimate integration of long stroke, high load, and compact space!
