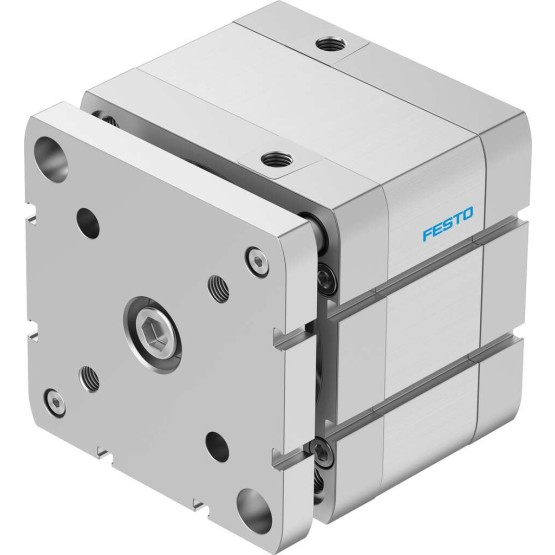

ADNGF-100-15-PPS-A

$484.89

Compact Cylinder is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:ADNGF-100-15-PPS-A

FESTO Order Number:577225

SKU: ADNGF-100-15-PPS-A Category: Tag:

Description

Stroke [mm] 15
Piston diameter 100 mm
Based on standard ISO 21287
Dampening PPS: Self-setting pneumatic end position dampening
installation position arbitrary
Construction set up Pistonpiston rodprofile tube
Position detection For proximity switch
Anti-twist lock / guide Guide rod with yoke
Operating pressure [bar] 1.4 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -20 to 80
Impact energy at the end positions [J] 2,50
Theoretical force at 6 bar, Return flow [N] 4.524
Theoretical force at 6 bar, flow [N] 4.712
Moving mass at 0 mm stroke [g] 1.089
Weight supplement per 10 mm stroke [g] 116
Base weight at 0 mm stroke [g] 2.673
Supplement moved mass per 10 mm stroke [g] 43
Pneumatic connection G1/8
Material information RoHs compliant
Cover material Aluminium die castingCoated
Seals material TPE-U(PUR)
Piston rod material High-alloyed steel
Cylinder tube material Aluminium wrought alloySmooth anodised
Dampening length [mm] 10,0
