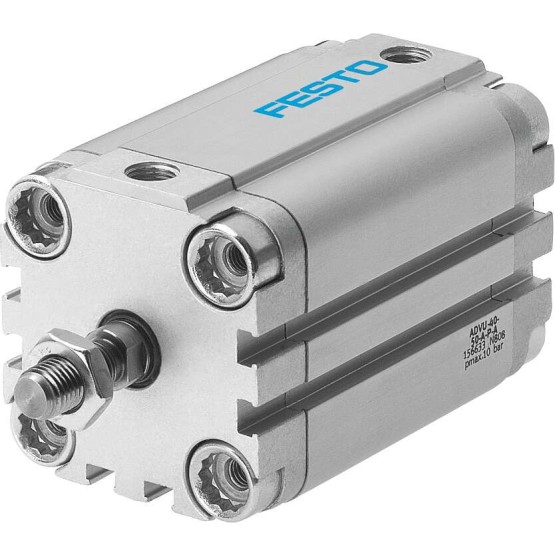

ADVU-100-20-A-P-A

ADVU-100-20-A-P-A

$622.79

Compact Cylinder is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:ADVU-100-20-A-P-A

FESTO Order Number:156665

SKU: ADVU-100-20-A-P-A Category: Tag:

Description

Stroke [mm] 20
Piston diameter 100 mm
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Principle of operation double acting
Piston rod end Male thread
Construction set up Pistonpiston rod
Position detection For proximity switch
Variants One-sided piston rod
Operating pressure [bar] 0.6 to 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -20 to 80
Impact energy at the end positions [J] 1,00
Theoretical force at 6 bar, Return flow [N] 4.418
Theoretical force at 6 bar, flow [N] 4.712
Moving mass at 0 mm stroke [g] 614
Weight supplement per 10 mm stroke [g] 177
Base weight at 0 mm stroke [g] 2.797
Supplement moved mass per 10 mm stroke [g] 38
Fastening type With throughway boresWith AccessoriesSelectively:
Pneumatic connection G1/4
Flush screw material Zinc plated steel
Cover material Aluminium wrought alloy
Dynamic seals material NBRTPE-U(PU)
Piston rod material High-alloyed steel
Cylinder tube material Aluminium wrought alloy
