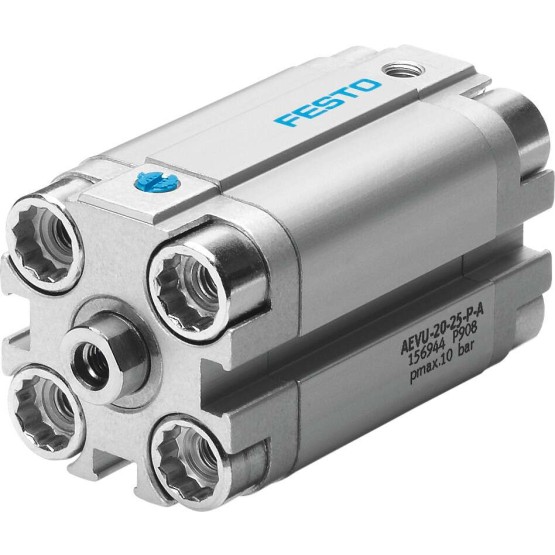

Description
Stroke [mm] 15
Piston diameter 20 mm
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Principle of operation Pressingsingle action
Piston rod end Female thread
Construction set up Pistonpiston rod
Position detection For proximity switch
Variants One-sided piston rod
Operating pressure [bar] 1 to 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -20 to 80
Impact energy at the end positions [J] 0,14
Theoretical force at 6 bar, flow [N] 180
Moving mass at 0 mm stroke [g] 20
Weight supplement per 10 mm stroke [g] 23
Base weight at 0 mm stroke [g] 149
Supplement moved mass per 10 mm stroke [g] 6
Fastening type With throughway boresWith AccessoriesSelectively:
Pneumatic connection M5
Flush screw material Zinc plated steel
Cover material Aluminium wrought alloy
Dynamic seals material NBRTPE-U(PU)
Piston rod material High-alloyed stainless steels
Cylinder tube material Aluminium wrought alloy
