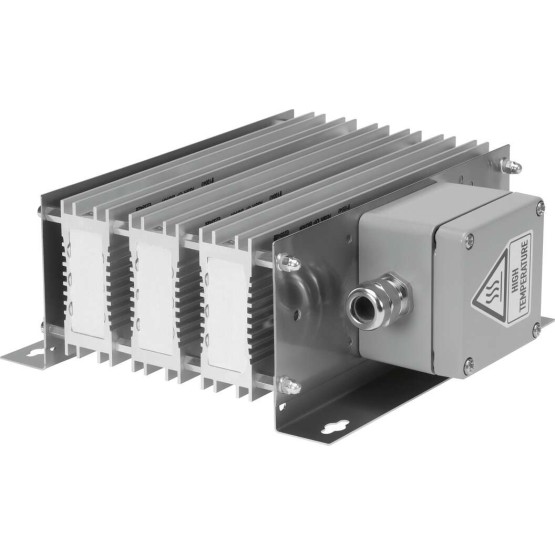

Line Choke is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .


FESTO Order Number:8096867

SKU: CAMF-C6-FD-C6-11A Category: Tag:


installation position Horizontal
Network frequency [Hz] 50 to 60
Permission ENECc UL – Recognized (OL)
CE certificate (see declaration of conformity) nach EU-RoHS-RL
Bearing temperature [??C] -10 to 40
Protection category IP00
ambient temperature [??C] -10 to 40
Product weight [g] 940
Fastening type Assembly plate, screwed
Material information LABS containing materials includedRoHs compliant
Operating voltage range AC [V] 0 to 600
Electrical connection 1, function Spannungsversorgung
Electrical connection 1, connection type Multi tube holder
Electrical connection 1, connection technology Screw clamp
Electrical connection 1, number of pins / wires 6
Electrical connection 1, occupied pin / wire 6
Short circuit resistance no
Current carrying capacity at 40??C [A] 6
Insulation voltage [V] 4.000
Elektrischer Anschluss 1, Leiterquerschnitt [mm2] 4
Nenninduktivit?t [mH] 3,7
Toleranz Nenninduktivit?t [%] 10
Dimensions W x L x H 60 mm x 80 mm x 116 mm
