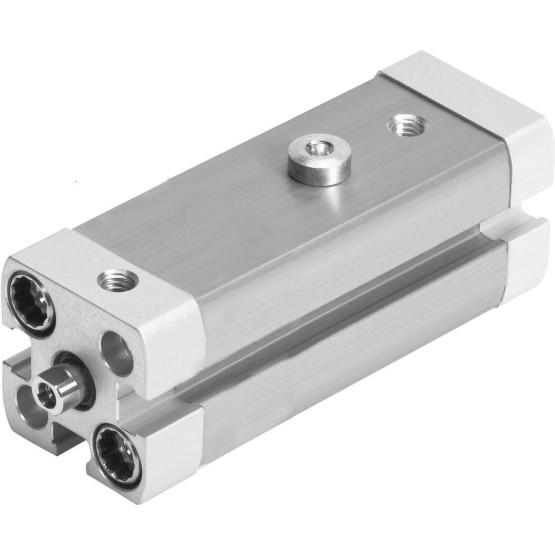

CLR-25-10-R-P-A

CLR-25-10-R-P-A

$458.23

Linear/Swivel Clamp is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:CLR-25-10-R-P-A

FESTO Order Number:535443

SKU: CLR-25-10-R-P-A Category: Tag:

Description

Total stroke [mm] 23
Piston diameter 25 mm
Piston rod thread M6
Swivel angle 90 deg ?I 3 deg
Clamping stroke [mm] 10
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Construction set up Pistonpiston rodcylinder tube
Position detection For proximity switch
Swivel direction Right
Operating pressure [bar] 2 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -10 to 80
Effective clamping strength at 2 bar [N] 63
Effective clamping strength at 4 bar [N] 127
Effective clamping strength at 6 bar [N] 188
Max. tightening torque Clamping finger screw [Nm] 12,0
Theoretical clamping strength at 6 bar [N] 227
Product weight [g] 395
Fastening type With throughway boresWith female threadWith AccessoriesSelectively:
Pneumatic connection M5
Flush screw material Steelzinc plating
Cover material Aluminium wrought alloyCoated
Seals material NBRTPE-U(PU)
Housing material Aluminium wrought alloySmooth anodised
Piston rod material High-alloyed stainless steels
Cylinder tube material Aluminium wrought alloySmooth anodised
