CLR-63-50-L-P-A-K11-R8

CLR-63-50-L-P-A-K11-R8

$976.70

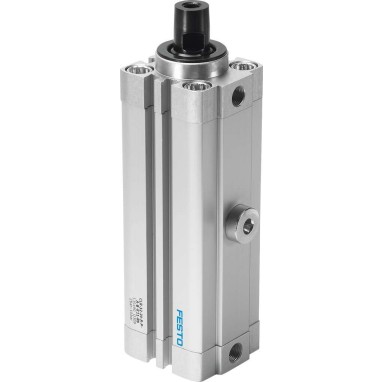

Linear/Swivel Clamp is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:CLR-63-50-L-P-A-K11-R8

FESTO Order Number:535509

SKU: CLR-63-50-L-P-A-K11-R8 Category: Tag:

Description

Total stroke [mm] 73
Piston diameter 63 mm
Piston rod thread M10
Swivel angle 90 deg ?I 2 deg
Clamping stroke [mm] 50
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Construction set up Pistonpiston rodcylinder tube
Position detection For proximity switch
Swivel direction Left
Operating pressure [bar] 2 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -10 to 80
Effective clamping strength at 2 bar [N] 441
Effective clamping strength at 4 bar [N] 823
Effective clamping strength at 6 bar [N] 1.386
Max. tightening torque Clamping finger screw [Nm] 47,0
Theoretical clamping strength at 6 bar [N] 1.682
Product weight [g] 2.625
Fastening type With throughway boresWith female threadWith AccessoriesSelectively:
Pneumatic connection G1/8
Flush screw material Steelzinc plating
Cover material Aluminium wrought alloyCoated
Seals material NBRTPE-U(PU)
Housing material Aluminium wrought alloySmooth anodised
Piston rod material CoatedHigh-alloyed stainless steels
Cylinder tube material Aluminium wrought alloySmooth anodised
Variants dust protectionWelding spatter protection
Wiper material PPS
