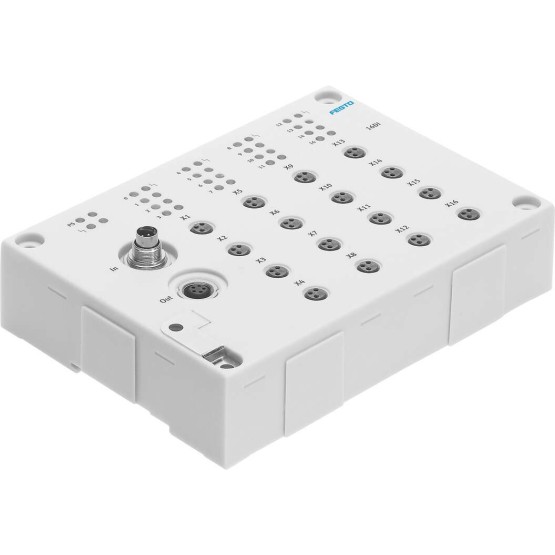

CP-E16-M12-EL

CP-E16-M12-EL

$461.76

Input Module is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:CP-E16-M12-EL

FESTO Order Number:546923

SKU: CP-E16-M12-EL Category: Tag:

Description

Permission C-tickc UL us – Listed (OL)
KC-mark KC-EMV
CE certificate (see declaration of conformity) to EU EMC directive
Corrosion resistant class KBK 1 – low corrosion stress
LED displays 16 Kanalstatus2 Moduldiagnose4 Gruppendiagnose
Fuse (short circuit) Internal electronic fuse Per group
Operating voltage DC load voltage [V] 24
Operating voltage range DC [V] 18 to 30
Input debouncing time 3 ms (0.5 ms, 10 ms, 20 ms parameterisable)
Max. cumulative currents per module [A] 0,7
Max. number of inputs 16
Nominal operating voltage DC [V] 24
Potential separation channel – channel no
Residual ripple load voltage 4 Vss
Switch level Signal 0: <= 6 VSignal 1: >= 8.6 V
Bearing temperature [??C] -20 to 70
Protection category IP65IP67
ambient temperature [??C] -5 to 50
Characteristic curves inputs IEC1131-T2
Switching logic inputs PNP (Positive switching)
Fastening type With throughway boresWith Slot railSelectively:
Material information RoHs compliant
Cover material PA reinforced
Housing material PA reinforced
