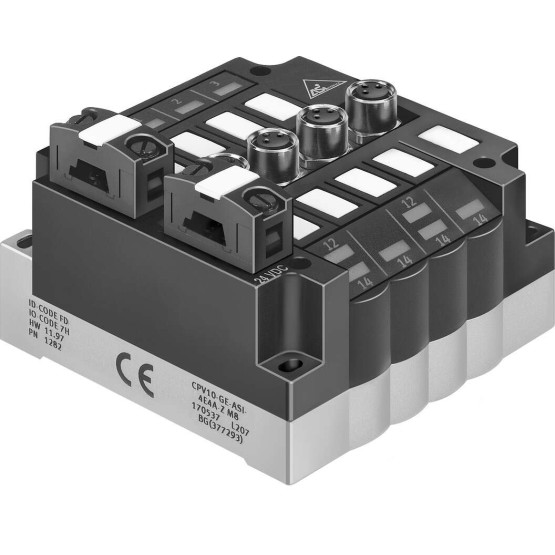

Description
Max. number of valve spaces 4
Reverse polarity protection for all electrical operating voltage connections
Nominal load voltage DC [V] 24
Corrosion resistant class KBK 2 – moderate corrosion stress
Bearing temperature [??C] -20 to 70
Relative humidity 0 – 95 %Not condensing
Protection category IP65In mounted condition
ambient temperature [??C] -5 to 50
LED display bus specific AS-i: As interface OperationAux/pwr: As interface voltage supplyFault: As interface Error
LED display product specific 0 … 3: Inputs switching status12/14: Valve switching status (On valve)
Cover material PA reinforced
Material information RoHs compliant
Fieldbus interface As interface: Flat cable plugLoad voltage: Flat cable plug
Device specific diagnosis Short circuit / overload inputs
Max. number of valve coils 4
Max. number of inputs 4
Addressing area 1A … 31A (0)1B … 31BSetting by AS interface addressing device
Galvanic separation fieldbus interface Opto-coupler
Product identification ID-Code: ID=Ah, ID1=7h, ID2=7hIO code: 7hProfile: S-7.A.7
Seals material CRNBR
Housing material Aluminium die casting
Quantity slaves per device 1
Operating voltage DC AS interface [V] 26.5 to 31.6
Debounce time inputs [ms] 3
Information about load voltage Via load voltage connection (24 V DC)
Load voltage range DC [V] 21.6 to 26.4
Nominal operating voltage DC AS-Interface [V] 26,5
Residual ripple AS interface 20 mVss
Residual ripple load voltage 4 Vss
Switch level Signal 0: <= 5 VSignal 1: >= 11 V
Power input for load supply from AS interface and load voltage connection Inputs: 200 mAElectronics: 20 mAValve: 115 mA (depending on valve type)
Characteristic curves inputs to IEC 1131-2 type 02
Switching logic inputs PNP (Positive switching)
