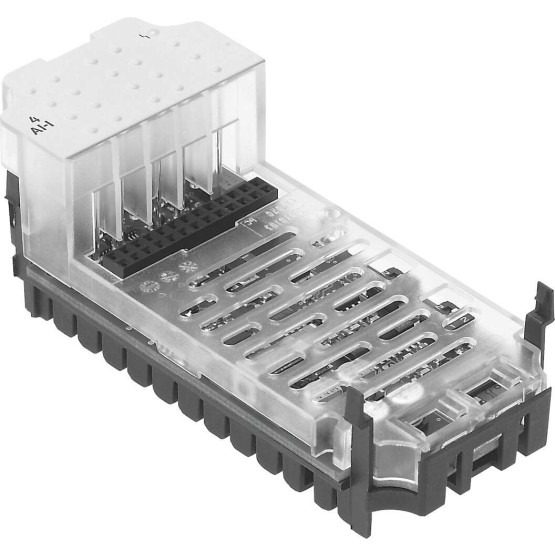

Description
Dimensions W x L x H 50 mm x 107 mm x 50 mm(Incl. linking block and connectors)
Diagnosis ParametrierfehlerDrahtbruch pro KanalGrenzwertverletzung pro KanalKurzschluss Eingangssignal
Parameterising Forcen pro KanalGrenzwert??berwachung/KanalMa?einheitMesswertgl?ttungSensortyp pro Kanal??berwachung Drahtbruch/Kanal
LED displays 1 Sammeldiagnose4 Kanaldiagnose
Internal cycle time 250 ms
Operating voltage range DC [V] 18 to 30
Intrinsic power input at operating voltage Type 50 mA
Nominal operating voltage DC [V] 24
Potential separation channel – internal bus yes
Potential separation channel – channel no
Corrosion resistant class KBK (In integrated condition)1 – low corrosion stress
Bearing temperature [??C] -20 to 70
Protection category Depends on connection block
ambient temperature [??C] -5 to 50
Product weight [g] 47,0
Max. line length 200 mShielded
Housing material PCPA reinforced
Quantity inputs 4
Fuse (short circuit) Internal electronic fuse
Repeatability 0.05 % at 25 ??C
Use error limits related to ambient temperature range ?I0,6 %
Base error limit at 25 ??C ?I0,6 K f??r Pt-Sensoren
Data format 15 bit + SignBinary display in tenths of degrees
Sensor type Ni 100Ni 1000Ni 120Ni 500Pt 100Pt 1000Pt 200Pt 500
