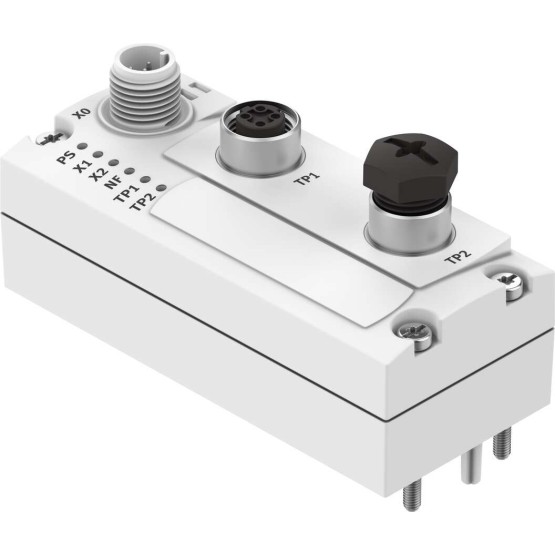

Description
Dimensions W x L x H 50 mm x 107 mm x 50 mm(Incl. linking block)
Parameterising SystemparameterDiagnoseverhaltenFallback A-DatenForcen von Kan?lenSignal-Setup
Additional functions Start-up parameterisation in text via field busSystem status can be shown from process datAdditional diagnosis interface for control panelAcyclical and cyclical data access via sercosIP addressing ia Sercos parameter or control panelChannel related diagnosis via fieldbus
Operating element DIL switch
Operating voltage range DC [V] 18 to 30
Intrinsic power input at operating voltage Type 100 mA
Nominal operating voltage DC [V] 24
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -20 to 70
Protection category IP65IP67
ambient temperature [??C] -5 to 50
Product weight [g] 125,0
Max. address volume outputs [Byte] 64
Max. address volume inputs [Byte] 64
Report Sercos III
Material information RoHs compliant
Housing material PA reinforced
Fieldbus interface 2x Socket M12x1.4-pin, D-coded
Device specific diagnosis Unterspannung ModuleDiagnose-SpeicherKanal- und modulorientierte Diagnose
Configuration support SDDML file
Baud rate 10/100, full/half duplex MBit/s
LED display bus specific S: Sercos LEDSD: Sercos sub-device LEDTP1: Network active port 1TP2: Network active port 2
LED display product specific PL: Load supplySF: System errorM: Modify, parameterisationPS: Electronics supply, sensor supply
