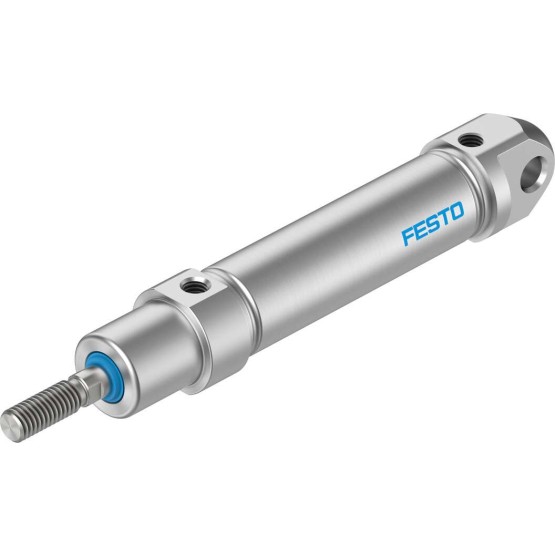

CRDSNU-B-16-10-P-A-MG-A1

CRDSNU-B-16-10-P-A-MG-A1

$124.49

Standards-Based Cyli is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:CRDSNU-B-16-10-P-A-MG-A1

FESTO Order Number:8073759

SKU: CRDSNU-B-16-10-P-A-MG-A1 Category: Tag:

Description

Stroke [mm] 10
Piston diameter 16 mm
Based on standard ISO 6432
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Construction set up Pistonpiston rodcylinder tube
Position detection For proximity switch
Operating pressure [bar] 1 to 10
Principle of operation double acting
Maritime classification see Certificate
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 4 – particularly severe corrosion stress
Food compatibility See expanded material information
ambient temperature [??C] 0 to 80
Theoretical force at 6 bar, Return flow [N] 104
Theoretical force at 6 bar, flow [N] 121
Moving mass at 0 mm stroke [g] 21,0
Weight supplement per 10 mm stroke [g] 4,8
Base weight at 0 mm stroke [g] 130
Supplement moved mass per 10 mm stroke [g] 2,2
Fastening type With Accessories
Pneumatic connection M5
Material information RoHs compliant
Cover material High-alloyed stainless steels
Piston rod material High-alloyed stainless steels
Cylinder tube material High-alloyed stainless steels
