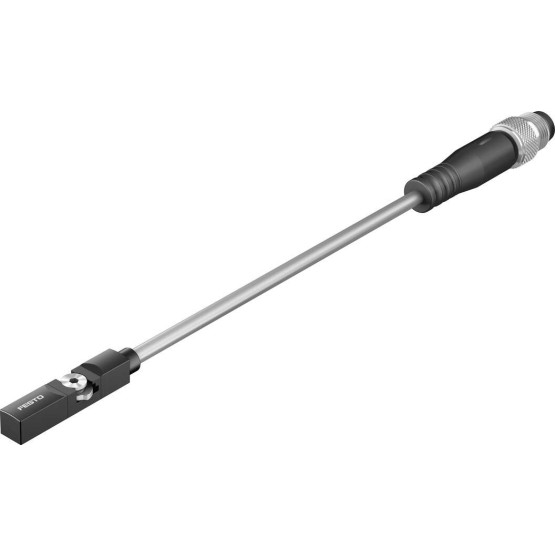

CRSMT-8M-PS-24V-K-5,0-OE

CRSMT-8M-PS-24V-K-5,0-OE

$67.94

Proximity Sensor is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:CRSMT-8M-PS-24V-K-5,0-OE

FESTO Order Number:574380

SKU: CRSMT-8M-PS-24V-K-5,0-OE Category: Tag:

Description

Permission RCM mark
CE certificate (see declaration of conformity) to EU EMC directiveto EU EX protection directive (ATEX)
KC-mark KC-EMV
Material information halogen freeRoHs compliant
Measurement principle Magnetoresistive
ambient temperature [??C] -40 to 85
Control output PNP
Switching element function NO contact
Max. output current [mA] 100
Max. switching capacity DC [W] 2,8
Short circuit resistance yes
Overload resistant Available
Operating voltage range DC [V] 5 to 30
Reverse polarity protection for all electrical connections
Electrical connection 1, connection type cable
Electrical connection 1, connection technology Open end
Electrical connection 1, number of pins / wires 3
Connection outlet direction along
Test conditions line Biegewechselfestigkeit nach Festo NormSchleppkette: 5 Millionen Zyklen, Biegeradius 75 mmTorsionsfestigkeit: > 300 000 Zyklen, ?I270??/0,1 m
Cable length [MTR] 5,0
Line properties Standard+cable track
Cable sleeve material TPE-O
Fastening type Insertable from above into the slotPermanently screwed
Housing material PAPPHigh-alloyed stainless steels
Ambient temperature for moving cable placements [??C] -20 to 85
Protection category IP65IP68IP69K
Design For T-slot
Rated operating voltage DC [V] 24
Product weight [g] 47,6
Switching status indicator LED yellow
Based on standard EN 60947-5-2
ATEX gas category II 3G
Ex ignition protection type gas Ex nA IIC T4 X Gc
ATEX dust category II 3D
Ex ignition protection type dust Ex tc IIIC T120??C X Dc
Ex ambient temperature -40??C <= Ta <= +85??C Special features k??hlschmiermittelbest?ndiglaugenbest?ndigs?urebest?ndig Measured parameter Position Repeatability [mm] 0,2 Switch on time [ms] <= 1 ms Switch off time [ms] <= 1 ms Max. switching frequency [Hz] 180 Voltage drop [V] < 1,5 V Minimum load current [mA] 0 Residual current [mA] < 0,05 mA Cable shield colour Grey Insulation sleeve material PP Wire ends Wire end sleeve Max. tightening torque [Nm] 0,6 installation position arbitrary Housing colour black Functional reserve display LED orange Food compatibility See expanded material information
