Home » Products » DADE-MVC-010

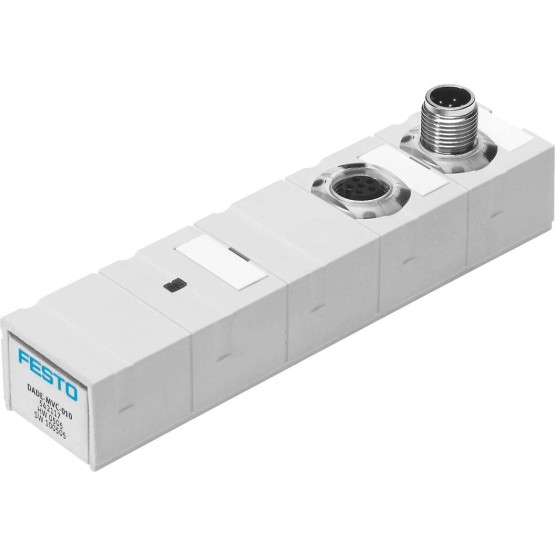

DADE-MVC-010

DADE-MVC-010

$461.47

Measured-Value Transd is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DADE-MVC-010

FESTO Order Number:542117

SKU: DADE-MVC-010 Category: Tag:

Description

Diagnose function Display via LED
installation position arbitrary
Short circuit resistance yes
Reverse polarity protection For PLC plug S1
Repeatability min. ?I0.1 mm
Analogue output 0 – 10 Vacc. to EN 61131-2
Voltage supply requirement Funktionskleinspannung mit sicherer Trennung (PELV)
Debounce time inputs [ms] 3
Nominal operating voltage DC [V] 24
Power blackout bridging of logic voltage [ms] 10
residual ripple 4 Vss
Power input in nominal operating voltage [mA] 20 to 30
Permitted voltage oscillations ?I 25 %
Permission RCM mark
CE certificate (see declaration of conformity) to EU EMC directive
Corrosion resistant class KBK 1 – low corrosion stress
Bearing temperature [??C] -20 to 70
Relative humidity 95 %Not condensing
Protection category IP65IP67
ambient temperature [??C] 0 to 55
Product weight [g] 128
Linearity error FS [%] 0,2
Characteristic curves outputs acc. to EN 61131-2
Characteristic curves inputs acc. to EN 61131-2
Switching logic inputs PNP (Positive switching)
Switching logic outputs PNP (Positive switching)
Electrical connection: measuring system M128 pinsocket / container / ??.
Electrical connection: PLC M128 pinPlug
Fastening type With throughway bores
Housing material PBT reinforced
