DAPS-0030-090-RS1-F0507

$403.26

Semi-Rotary Drive is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

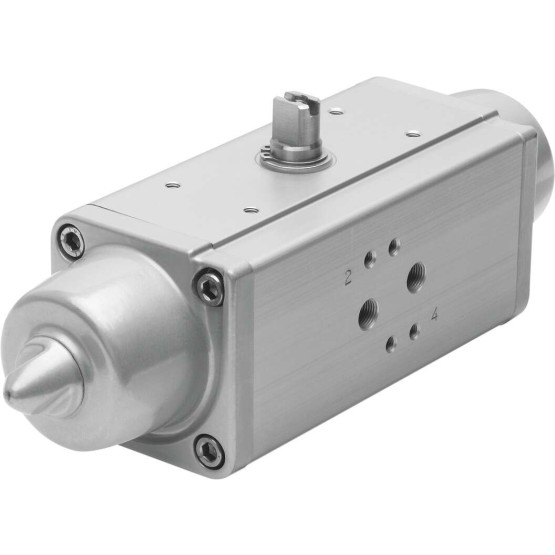

Model:DAPS-0030-090-RS1-F0507

FESTO Order Number:533484

SKU: DAPS-0030-090-RS1-F0507 Category: Tag:

Description

Position drive dimensions 0030
Flange drilling screen F05F07
Swivel angle [deg] 90
Adjustable range end position at 0?? [deg] -1 to 9
Shaft connection Depth [mm] 16,5
Standard connection to fitting ISO 5211
Dampening No dampening
installation position arbitrary
Principle of operation single action
Construction set up Joch kinematics
Position detection without
Closing direction Right closing
Valve connection corresponds to standard VDI/VDE 3845 (NAMUR)
Safety Integrity Level (SIL) Product can be used in SRP/CS up to SIL 2 Low DemandProduct can be used in SRP/CS up to SIL 2 High Demand
Operating pressure [bar] 2.8 to 8.4
Nominal operating pressure [bar] 5,6
CE certificate (see declaration of conformity) to EU EX protection directive (ATEX)
ATEX gas category II 2G
ATEX dust category II 2D
Ex ignition protection type gas Ex h IIC T6…T3 Gb X
Ex ignition protection type dust Ex h IIIC T85??C…T200??C Db X
Ex ambient temperature -20??C <= Ta <= +60??C Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 3 - severe corrosion stress ambient temperature [??C] -20 to 80 Information about torque The operating torque of the actuator may not be higher than the maximum permitted torque listed in ISO 5211, related to the size of the fastening flange and the coupling. Air consumption a 6 bar per cycle 0??-90??-0?? [LTR] 1,19 Product weight [g] 1.650 Shaft connection T14 Pneumatic connection G1/8 Material information RoHs compliant Cover material Aluminium wrought alloy Seals material FKMNBRPUR Housing material Aluminium wrought alloy Screws material High-alloyed steel Shaft material High-alloyed steel Material number shaft 1.4305 Adjustable range end position at 90?? [deg] 81 to 91 Information about the adjustment range of the end positions Selectively one end position is adjustable Connection pressure for spring strength [bar] 2,8 Spring force torque at a swivel angle 0?? [Nm] 10,0 Spring force torque at a swivel angle 50?? [Nm] 7,5 Spring force torque at 90?? [Nm] 15,0 Spring strength 1
