Home » Products » DFC-6-20-P-A-GF

DFC-6-20-P-A-GF

DFC-6-20-P-A-GF

$456.16

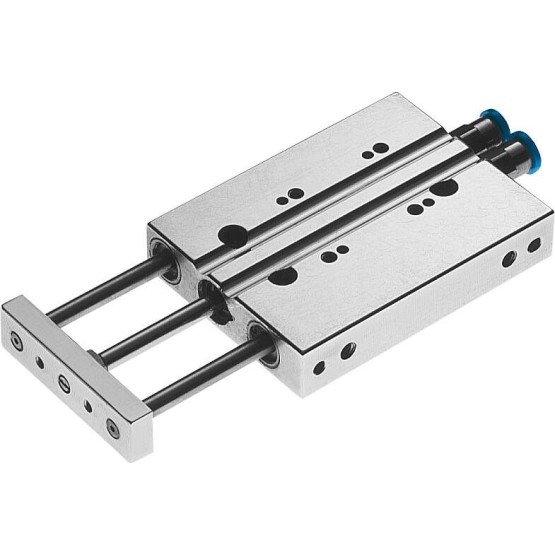

Mini Guided is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DFC-6-20-P-A-GF

FESTO Order Number:189458

SKU: DFC-6-20-P-A-GF Category: Tag:

Description

Centre of mass distance of payload to Joch plate [mm] 10
Stroke [mm] 20
Piston diameter 6 mm
Operating mode actuator unit Joch
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Guide sliding guide
Construction set up Guide
Position detection For proximity switch
Operating pressure [bar] 1.5 to 10
Max. speed [m/s] 1
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -5 to 60
Impact energy at the end positions [J] 0,008
Max. torque Mx [Nm] 0,10
Max. usable load depending on the stroke at a defined distance xs [N] 4,8
Theoretical force at 6 bar, Return flow [N] 12,5
Theoretical force at 6 bar, flow [N] 17,0
Moving mass [g] 8,8
Moving mass at 0 mm stroke [g] 8,8
Product weight [g] 44,0
Supplement moved mass per 10 mm stroke [g] 2,8
Pneumatic connection M3
Cover material Aluminium wrought alloy
Seals material NBR
Housing material Aluminium wrought alloy
Piston rod material High-alloyed stainless steels
