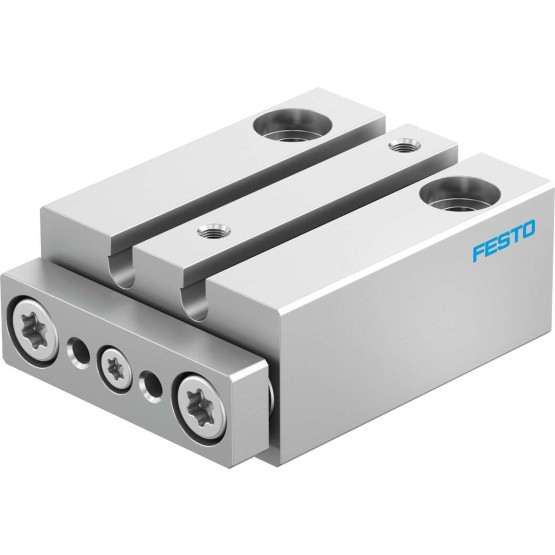

DFM-10-20-P-A-GF

$152.57

Guided Drive is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DFM-10-20-P-A-GF

FESTO Order Number:4154799

SKU: DFM-10-20-P-A-GF Category: Tag:

Description

Centre of mass distance of payload to Joch plate [mm] 10
Stroke [mm] 20
Piston diameter 10 mm
Operating mode actuator unit Joch
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Guide sliding guide
Construction set up Guide
Position detection For proximity switch
Operating pressure [bar] 1.5 to 8
Max. speed [m/s] 1,7
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
ambient temperature [??C] -10 to 60
Impact energy at the end positions [J] 0,035
Max. permitted moment load Mx depending on stroke [Nm] 0,034
Max. usable load depending on the stroke at a defined distance xs [N] 2,00
Theoretical force at 6 bar, Return flow [N] 47
Theoretical force at 6 bar, flow [N] 68
Moving mass [g] 21,0
Product weight [g] 60,5
Pneumatic connection M3
Material information RoHs compliant
Cover material High-alloyed stainless steels
Seals material NBR
Housing material Aluminium wrought alloy, anodised
Piston rod material High-alloyed stainless steels
Torsional play [deg] 0,1
Dynamic seals material HNBR
End plate material Aluminium wrought alloy, anodised
Werkstoff F??hrungsstange High-alloyed stainless steels
