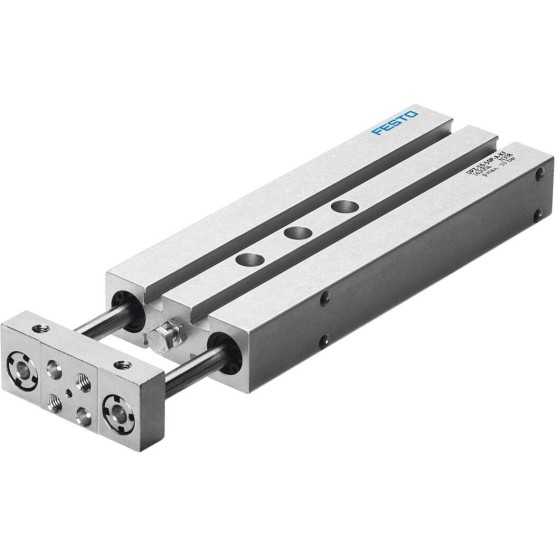

Description
Centre of mass distance of payload to Joch plate [mm] 125
Stroke [mm] 80
Piston diameter 80 mm
Operating mode actuator unit Joch
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Guide ball guide
Construction set up Guide
Position detection For proximity switch
Operating pressure [bar] 0.5 to 10
Max. speed [m/s] 0,4
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 0 – No corrosion stressing
ambient temperature [??C] -5 to 60
Impact energy at the end positions [J] 0,750
Max. permitted moment load Mx depending on stroke [Nm] 25,500
Max. usable load depending on the stroke at a defined distance xs [N] 329,00
Theoretical force at 6 bar, Return flow [N] 2.827
Theoretical force at 6 bar, flow [N] 3.016
Moving mass [g] 4.632,0
Product weight [g] 8.895,0
Alternative connections See product drawing
Pneumatic connection G3/8
Material information Copper and PTFE-freeRoHs compliant
Cover material Aluminium wrought alloy
Seals material NBR
Housing material Aluminium wrought alloy
Piston rod material High-alloyed stainless steels
Max. force Fy [N] 2.048
Max. force Fy static [N] 3.120
Max. force Fz [N] 2.048
Max. force Fz static [N] 3.120
Max. torque Mx [Nm] 158,67
Max. torque Mx static [Nm] 241,80
Max. torque My [Nm] 100,35
Max. torque My static [Nm] 152,90
Max. torque Mz [Nm] 100,35
Max. torque Mz static [Nm] 152,90
Centre of mass of the moved mass depending on stroke [mm] 66,8
