Home » Products » DGSL-16-10-P1A

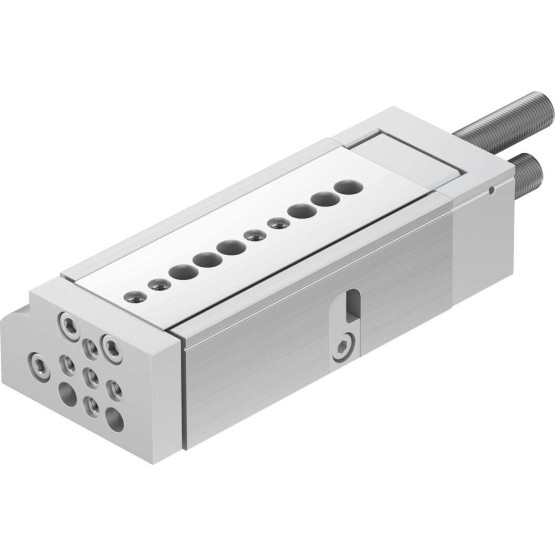

DGSL-16-10-P1A

DGSL-16-10-P1A

$838.63

Mini Slide is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DGSL-16-10-P1A

FESTO Order Number:543991

SKU: DGSL-16-10-P1A Category: Tag:

Description

Stroke [mm] 10
Alignable end position range / Length front [mm] 37,5
Alignable end position range / Length rear [mm] 39,5
Piston diameter 20 mm
Operating mode actuator unit Joch
Dampening P1: Elastic silencer rings / plates double-sided With fixed limit stop
installation position arbitrary
Guide Ball cage guide
Construction set up JochKolbenKolbenstangeSchlitten
Position detection For proximity switch
Operating pressure [bar] 1 to 8
Max. speed [m/s] 0,8
Repeatability ??0.01 mm
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 0 – No corrosion stressing
ambient temperature [??C] 0 to 60
Impact energy at the end positions [J] 0,120
Dampening length [mm] 4,2
Max. force Fy [N] 1.769
Max. force Fz [N] 1.769
Max. torque Mx [Nm] 35
Max. torque My [Nm] 20,0
Max. torque Mz [Nm] 20,0
Theoretical force at 6 bar, Return flow [N] 158
Theoretical force at 6 bar, flow [N] 188
Moving mass [g] 403
Product weight [g] 976
Alternative connections See product drawing
Fastening type With throughway bores
Pneumatic connection M5
Material information Copper and PTFE-freeRoHs compliant
Cover material Aluminium wrought alloy
Seals material HNBR
Housing material Aluminium wrought alloy
Piston rod material High-alloyed stainless steels
