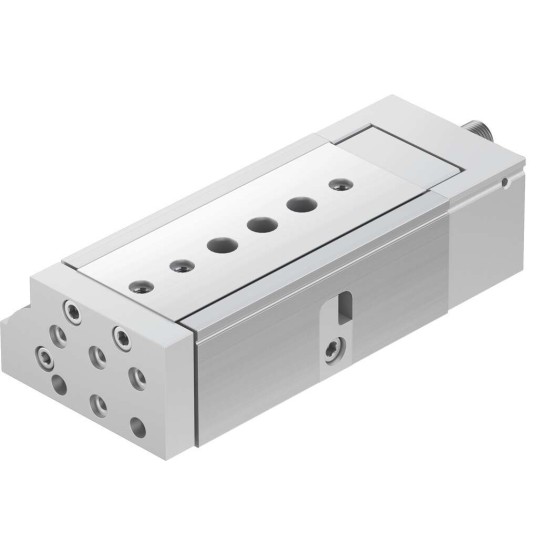

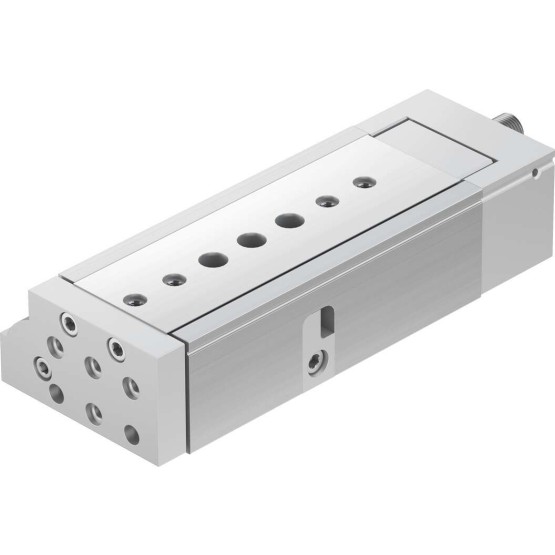

Description
Stroke [mm] 80
Alignable end position range / Length front [mm] 66,5
Alignable end position range / Length rear [mm] 5,5
Piston diameter 32 mm
Operating mode actuator unit Joch
Dampening Short elastic dampening rings / plates both sides
installation position arbitrary
Guide Ball cage guide
Construction set up JochKolbenKolbenstangeSchlitten
Position detection For proximity switch
Operating pressure [bar] 1 to 8
Max. speed [m/s] 0,8
Repeatability 0.3 mm
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 0 – No corrosion stressing
ambient temperature [??C] 0 to 60
Impact energy at the end positions [J] 0,550
Dampening length [mm] 1,3
Max. force Fy [N] 4.700
Max. force Fz [N] 4.700
Max. torque Mx [Nm] 130
Max. torque My [Nm] 80,0
Max. torque Mz [Nm] 80,0
Theoretical force at 6 bar, Return flow [N] 415
Theoretical force at 6 bar, flow [N] 483
Moving mass [g] 1.567
Product weight [g] 4.100
Alternative connections See product drawing
Fastening type With throughway bores
Pneumatic connection G1/8
Material information Copper and PTFE-freeRoHs compliant
Cover material Aluminium wrought alloy
Seals material HNBR
Housing material Aluminium wrought alloy
Piston rod material High-alloyed stainless steels
