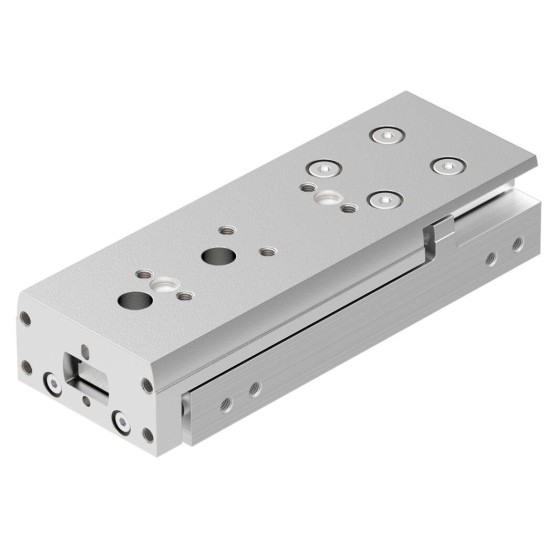

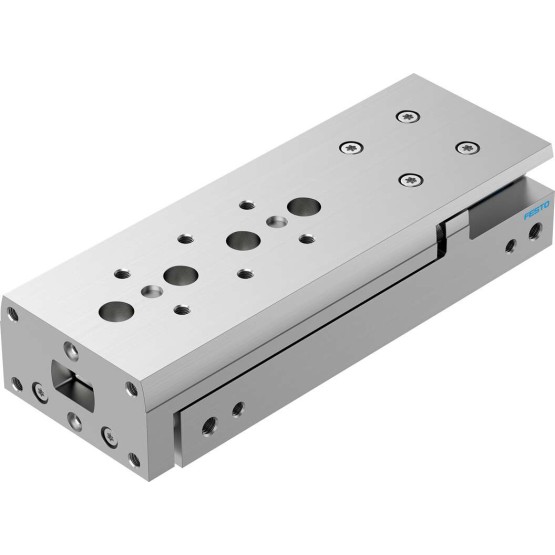

Description
Stroke [mm] 100
Piston diameter 10 mm
Operating mode actuator unit Joch
Dampening Elastomerd?mpfung, beidseitig, Hub nicht einstellbar
installation position arbitrary
Guide ball guide
Construction set up DoppelkolbenJochKolbenstangeSchlitten
Position detection For proximity switch
Operating pressure [bar] 1 to 8
Max. speed [m/s] 0,5
Repeatability <= 0,3 mm
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 - low corrosion stress
ambient temperature [??C] -10 to 60
Impact energy at the end positions [J] 0,050
Dampening length [mm] 1,6
Max. force Fy [N] 530
Max. force Fz [N] 530
Max. torque Mx [Nm] 6,0
Max. torque My [Nm] 6,0
Max. torque Mz [Nm] 6,0
Theoretical force at 6 bar, Return flow [N] 79
Theoretical force at 6 bar, flow [N] 94
Moving mass [g] 269,0
Product weight [g] 561,0
Fastening type With throughway bores
Pneumatic connection M5
Material information Copper and PTFE-freeRoHs compliant
Cover material Aluminium wrought alloy
Seals material HNBR
Werkstoff F??hrung POMTPE-Ehochlegierter Stahl
Housing material Aluminium wrought alloy
Piston rod material High-alloyed stainless steels
