Home » Products » DGST-25-50-E1A

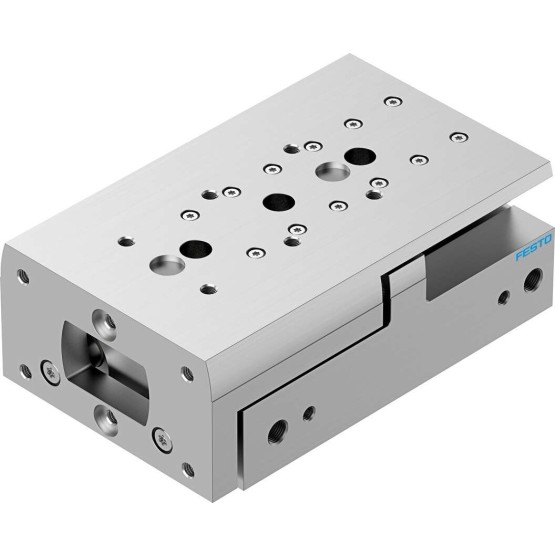

DGST-25-50-E1A

$760.38

Mini Slide is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DGST-25-50-E1A

FESTO Order Number:8078876

SKU: DGST-25-50-E1A Category: Tag:

Description

Stroke [mm] 50
Piston diameter 25 mm
Operating mode actuator unit Joch
Dampening Elastomerd?mpfung, beidseitig, Hub nicht einstellbar
installation position arbitrary
Guide Ball cage guide
Construction set up DoppelkolbenJochKolbenstangeSchlitten
Position detection For proximity switch
Operating pressure [bar] 1 to 8
Max. speed [m/s] 0,5
Repeatability <= 0,3 mm Principle of operation double acting Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 1 - low corrosion stress ambient temperature [??C] -10 to 60 Impact energy at the end positions [J] 0,300 Dampening length [mm] 1,2 Max. force Fy [N] 1.080 Max. force Fz [N] 1.080 Max. torque Mx [Nm] 12,0 Max. torque My [Nm] 11,0 Max. torque Mz [Nm] 11,0 Theoretical force at 6 bar, Return flow [N] 495 Theoretical force at 6 bar, flow [N] 589 Moving mass [g] 897,0 Product weight [g] 1.816,0 Fastening type With throughway bores Pneumatic connection G1/8 Material information Copper and PTFE-freeRoHs compliant Cover material Aluminium wrought alloy Seals material HNBR Werkstoff F??hrung POMTPE-Ehochlegierter Stahl Housing material Aluminium wrought alloy Piston rod material High-alloyed stainless steels
