Home » Products » DHDS-50-A-NC

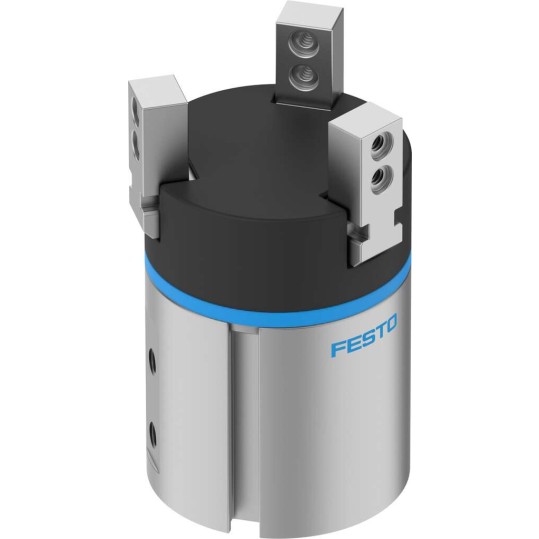

DHDS-50-A-NC

DHDS-50-A-NC

$1,399.93

Three-Point Gripper is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DHDS-50-A-NC

FESTO Order Number:1259496

SKU: DHDS-50-A-NC Category: Tag:

Description

size 50
Stroke per gripper jaw [mm] 6,0
Max. exchange precision [mm] <= 0,2 mm Max. gripper jaw play ax, ay [deg] <= 0,2 deg Max. gripper jaw play Sz [mm] <= 0,02 mm Rotational symmetry [mm] <= 0,2 mm Repeatability grippers [mm] <= 0,04 mm Quantity Gripper jaws 3 installation position arbitrary Principle of operation double acting Gripper function 3 point Construction set up leverForce controlled movement cycle Position detection For proximity switch Operating pressure [bar] 4 to 8 Max. working frequency gripper [Hz] <= 4 Hz Min. opening time a 6 bar [ms] 73 Min. closing time at 6 bar [ms] 50 Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 1 - low corrosion stress ambient temperature [??C] 5 to 60 Mass inertia [kg/cm2] 6,180 Max. force on gripper jaws Fz static [N] 250 Max. torque on gripper jaws Mx static [Nm] 24 Max. torque on gripper jaws My static [Nm] 24 Max. torque on gripper jaws Mz static [Nm] 24 Lubrication interval guide elements [Mio SP] 10 Max. mass per external griper finger [g] 250 Product weight [g] 932 Fastening type With Female thread and dowel pin Pneumatic connection G1/8 Material information RoHs compliant Cover cap material PA Housing material Aluminium wrought alloyHard anodised Gripper jaws material High-alloyed stainless steels Gripping force safety When closing
