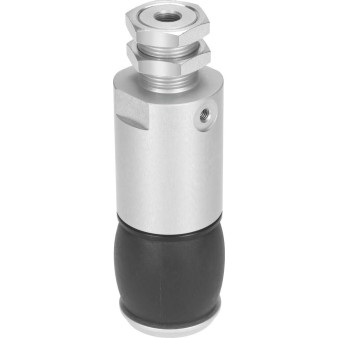

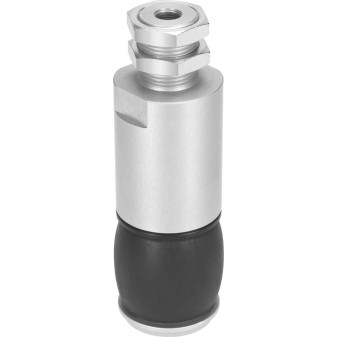

DHEB-14-E-D-E-L

DHEB-14-E-D-E-L

$176.81

Bellows Gripper is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DHEB-14-E-D-E-L

FESTO Order Number:1320768

SKU: DHEB-14-E-D-E-L Category: Tag:

Description

size 14
Bellows stroke [mm] 7,0
Min. diameter to be gripped [mm] 15,0
Max. diameter to be gripped [mm] 19,5
installation position arbitrary
Principle of operation single actionclosed
Construction set up Contact membraneForce controlled movement cycle
Guide Base guide
Position detection without
Operating pressure [bar] 5 to 8
reset pressure [bar] < 1 bar Max. working frequency gripper [Hz] <= 4 Hz Min. opening time a 6 bar [ms] 20 Min. closing time at 6 bar [ms] 40 Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 2 - moderate corrosion stress ambient temperature [??C] 5 to 60 Centre exchange interval for bellows [Mio SP] 0,5 Guideline payload [KGM] 0,15 Product weight [g] 17 Fastening type With Male threadWith locking nutSelectively: Pneumatic connection M5 Material information LABS containing materials includedRoHs compliant Bellows material EPDM Housing material aluminiumanodized
