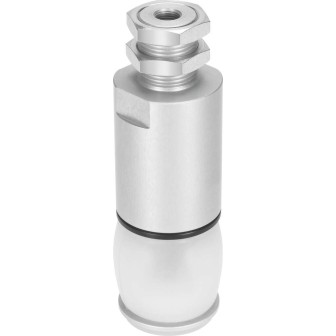

DHEB-51-E-U-S-L

DHEB-51-E-U-S-L

$516.43

Bellows Gripper is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DHEB-51-E-U-S-L

FESTO Order Number:1320807

SKU: DHEB-51-E-U-S-L Category: Tag:

Description

size 51
Bellows stroke [mm] 18,0
Min. diameter to be gripped [mm] 54,0
Max. diameter to be gripped [mm] 68,0
installation position arbitrary
Principle of operation single actionclosed
Construction set up Contact membraneForce controlled movement cycle
Guide Base guide
Position detection For proximity switch
Operating pressure [bar] 4 to 8
reset pressure [bar] < 1 bar Max. working frequency gripper [Hz] <= 4 Hz Min. opening time a 6 bar [ms] 30 Min. closing time at 6 bar [ms] 70 Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 2 - moderate corrosion stress Food compatibility See expanded material information ambient temperature [??C] 5 to 60 Centre exchange interval for bellows [Mio SP] 1,0 Guideline payload [KGM] 2,50 Product weight [g] 500 Fastening type With Male threadWith locking nutSelectively: Pneumatic connection G1/8 Material information LABS containing materials includedRoHs compliant Bellows material VMQ (Silicone) Housing material aluminiumanodized
