Home » Products » DHPS-16-A

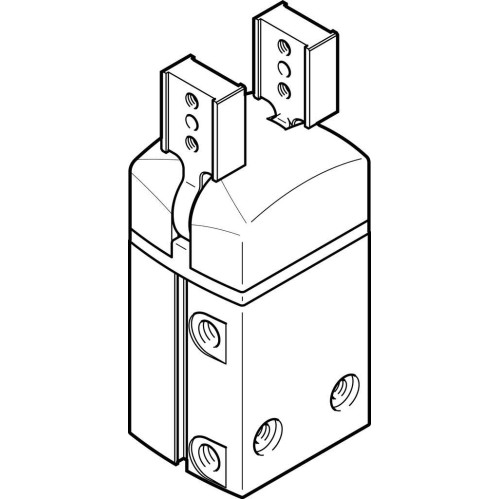

DHPS-16-A

DHPS-16-A

$633.16

Parallel Gripper is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DHPS-16-A

FESTO Order Number:1254043

SKU: DHPS-16-A Category: Tag:

Description

size 16
Stroke per gripper jaw [mm] 5,0
Max. exchange precision [mm] <= 0,2 mm Max. gripper jaw play ax, ay [deg] < 0,5 deg Max. gripper jaw play Sz [mm] < 0,02 mm Rotational symmetry [mm] <= 0,2 mm Repeatability grippers [mm] < 0,02 mm Quantity Gripper jaws 2 installation position arbitrary Principle of operation double acting Gripper function Parallel Construction set up leverForce controlled movement cycle Guide sliding guide Position detection For proximity switch Open total gripping force at 6 bar [N] 210 Close total gripping force at 6 bar [N] 190 Operating pressure [bar] 2 to 8 Max. working frequency gripper [Hz] 3 Min. opening time a 6 bar [ms] 33 Min. closing time at 6 bar [ms] 41 Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 1 - low corrosion stress ambient temperature [??C] 5 to 60 Open gripper jaws at gripping force of 6 bar [N] 105 Close gripper jaws at gripping force at 6 bar [N] 96,0 Mass inertia [kg/cm2] 0,465 Max. force on gripper jaws Fz static [N] 150 Max. torque on gripper jaws Mx static [Nm] 8,0 Max. torque on gripper jaws My static [Nm] 8,0 Max. torque on gripper jaws Mz static [Nm] 8,0 Lubrication interval guide elements [Mio SP] 10 Max. mass per external griper finger [g] 150 Product weight [g] 184 Fastening type Selectively:Female thread and centring sleeveWith Throughway bore and centring sleeve Pneumatic connection M3 Material information RoHs compliant Cover cap material PA Housing material Aluminium wrought alloyHard anodised Gripper jaws material High-alloyed stainless steels
