DHWS-40-A-NC

DHWS-40-A-NC

$862.84

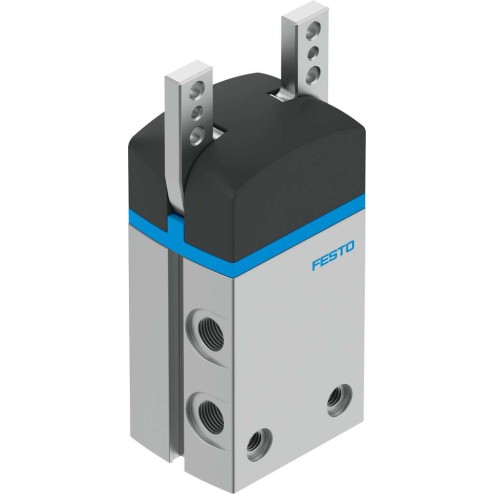

Angle Gripper is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DHWS-40-A-NC

FESTO Order Number:1310185

SKU: DHWS-40-A-NC Category: Tag:

Description

size 40
Max. exchange precision [mm] <= 0,2 mm Max. opening angle [deg] 40 Rotational symmetry [mm] <= 0,2 mm Repeatability grippers [mm] <= 0,04 mm Quantity Gripper jaws 2 installation position arbitrary Principle of operation double acting Gripper function elbow Construction set up lever Position detection For proximity switch Operating pressure [bar] 4 to 8 Max. working frequency gripper [Hz] <= 3 Hz Min. opening time a 6 bar [ms] 99 Min. closing time at 6 bar [ms] 69 Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Information about operating and control medium Oiled operation possible (required in further operations) Corrosion resistant class KBK 1 - low corrosion stress ambient temperature [??C] 5 to 60 Mass inertia [kg/cm2] 3,87 Max. force on gripper jaws Fz static [N] 200 Max. torque on gripper jaws Mx static [Nm] 13,0 Max. torque on gripper jaws My static [Nm] 13,0 Max. torque on gripper jaws Mz static [Nm] 13,0 Product weight [g] 790 Fastening type Selectively:Female thread and centring sleeveWith Throughway bore and centring sleeve Pneumatic connection G1/8 Material information RoHs compliant Cover cap material PA Housing material Aluminium wrought alloyHard anodised Gripper jaws material High-alloyed steel Gripping force safety When closing
