Home » Products » DNC-80-320-PPV

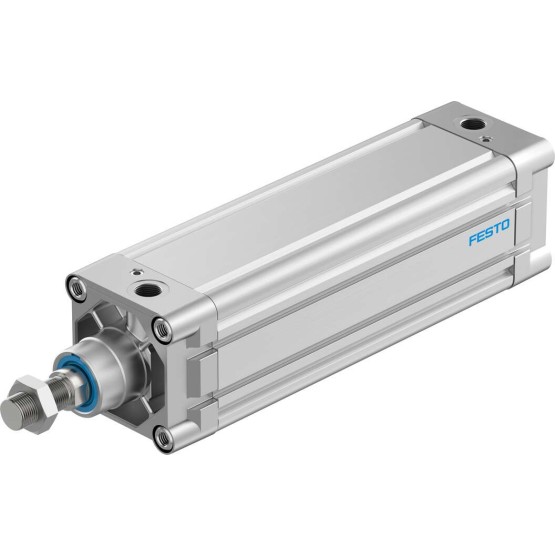

DNC-80-320-PPV

DNC-80-320-PPV

$562.18

Standards-Based Cylin is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DNC-80-320-PPV

FESTO Order Number:163456

SKU: DNC-80-320-PPV Category: Tag:

Description

Stroke [mm] 320
Piston diameter 80 mm
Piston rod thread M20x1,5
Dampening PPV: Pneumatic dampening both sides adjustable
installation position arbitrary
Complies to standard ISO 15552
Piston rod end Male thread
Construction set up Pistonpiston rodprofile tube
Position detection without
Variants One-sided piston rod
Operating pressure [bar] 0.6 to 12
Principle of operation double acting
Maritime classification see Certificate
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -20 to 80
Impact energy at the end positions [J] 0,9
Dampening length [mm] 32
Theoretical force at 6 bar, Return flow [N] 2.721
Theoretical force at 6 bar, flow [N] 3.016
Moving mass at 0 mm stroke [g] 1.131
Weight supplement per 10 mm stroke [g] 106
Base weight at 0 mm stroke [g] 2.790
Supplement moved mass per 10 mm stroke [g] 38
Fastening type With female threadWith Accessories
Pneumatic connection G3/8
Material information RoHs compliant
Cover material Aluminium die castingCoated
Seals material TPE-U(PU)
Piston rod material High-alloyed steel
Cylinder tube material Aluminium wrought alloySmooth anodised
