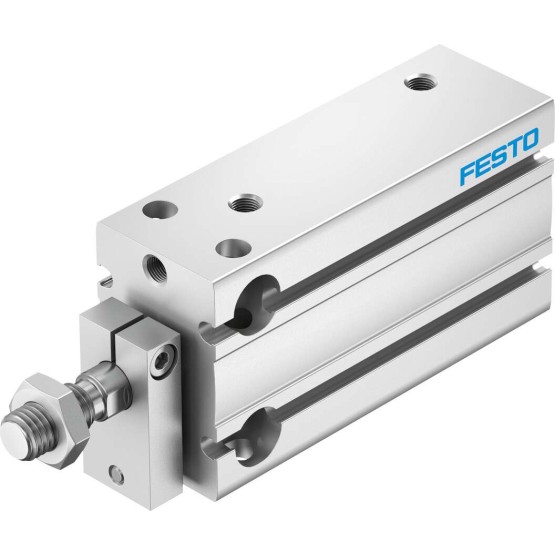

DPDM-Q-20-5-P-PA

DPDM-Q-20-5-P-PA

$105.39

Compact Cylinder is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DPDM-Q-20-5-P-PA

FESTO Order Number:4840832

SKU: DPDM-Q-20-5-P-PA Category: Tag:

Description

Stroke [mm] 5
Piston diameter 20 mm
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Principle of operation single actionPulling
Construction set up Pistonpiston rodprofile tube
Position detection For proximity switch
Variants One-sided piston rod
Operating pressure [bar] 1.5 to 8
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -10 to 80
Theoretical force at 6 bar, flow [N] 130
Moving mass at 0 mm stroke [g] 46,0
Weight supplement per 10 mm stroke [g] 22,5
Base weight at 0 mm stroke [g] 140,0
Supplement moved mass per 10 mm stroke [g] 4,6
Fastening type With throughway boresWith female threadSelectively:
Pneumatic connection M5
Material information RoHs compliant
Cover material Aluminium wrought alloy
Seals material TPE-U(PU)
Housing material Aluminium wrought alloy, anodised
Piston rod material High-alloyed stainless steels
Theoretical force at 6 bar, Return flow [N] 130
Anti-twist lock / guide Guide rod with yoke
