Home » Products » DSBC-32-70-D3-PPVA-N3

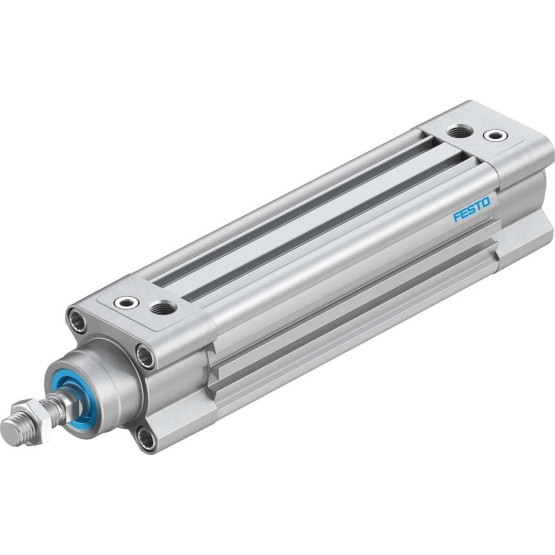

DSBC-32-70-D3-PPVA-N3

$183.48

Standards-Based Cyli is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DSBC-32-70-D3-PPVA-N3

FESTO Order Number:3656517

SKU: DSBC-32-70-D3-PPVA-N3 Category: Tag:

Description

Stroke [mm] 70
Piston diameter 32 mm
Piston rod thread M10x1,25
Dampening PPV: Pneumatic dampening both sides adjustable
installation position arbitrary
Complies to standard ISO 15552
Piston rod end Male thread
Construction set up Pistonpiston rodprofile tube
Position detection For proximity switch
Variants One-sided piston rod
Operating pressure [bar] 0.6 to 12
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -20 to 80
Impact energy at the end positions [J] 0,4
Dampening length [mm] 17
Theoretical force at 6 bar, Return flow [N] 415
Theoretical force at 6 bar, flow [N] 483
Moving mass at 0 mm stroke [g] 110
Weight supplement per 10 mm stroke [g] 27
Base weight at 0 mm stroke [g] 465
Supplement moved mass per 10 mm stroke [g] 9
Fastening type With female threadWith AccessoriesSelectively:
Pneumatic connection G1/8
Material information RoHs compliant
Cover material Alu-Druckguss, beschichtet
Werkstoff Kolbendichtung TPE-U(PU)
Piston material Aluminium wrought alloy
Piston rod material High-alloyed steel
Werkstoff Kolbenstangen-Dichtabstreifer TPE-U(PU)
Werkstoff Pufferdichtung TPE-U(PU)
Werkstoff Pufferkolben POM
Cylinder tube material Aluminium-Knetlegierung, gleiteloxiert
Nut material Zinc plated steel
Bearing material POM
Flush screw material Zinc plated steel
