Home » Products » DSBF-C-125-50-PPVA-N3-R

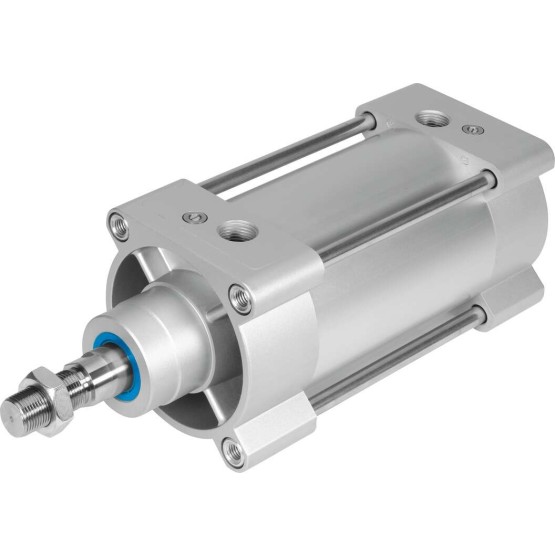

DSBF-C-125-50-PPVA-N3-R

$921.08

Standards-Based Cyli is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DSBF-C-125-50-PPVA-N3-R

FESTO Order Number:1785014

SKU: DSBF-C-125-50-PPVA-N3-R Category: Tag:

Description

Stroke [mm] 50
Piston diameter 125 mm
Piston rod thread M27x2
Dampening PPV: Pneumatic dampening both sides adjustable
installation position arbitrary
Complies to standard ISO 15552
Piston rod end Male thread
Construction set up Pistonpiston rodprofile tube
Position detection For proximity switch
Operating pressure [bar] 0.2 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 3 – severe corrosion stress
ambient temperature [??C] -20 to 80
Impact energy at the end positions [J] 3,3
Dampening length [mm] 45
Theoretical force at 6 bar, Return flow [N] 6.881
Theoretical force at 6 bar, flow [N] 7.363
Moving mass at 0 mm stroke [g] 2.245
Weight supplement per 10 mm stroke [g] 163
Base weight at 0 mm stroke [g] 6.928
Supplement moved mass per 10 mm stroke [g] 63
Fastening type With female threadWith AccessoriesSelectively:
Pneumatic connection G1/2
Material information RoHs compliant
Cover material Alu-Druckguss, beschichtet
Werkstoff Kolbendichtung TPE-U(PU)
Piston material Aluminium wrought alloy
Piston rod material High-alloyed stainless steels
Werkstoff Kolbenstangen-Dichtabstreifer TPE-U(PU)
Werkstoff Pufferdichtung TPE-U(PU)
Werkstoff Pufferkolben POM
Cylinder tube material Aluminium wrought alloy, anodised
Nut material High-alloyed stainless steels
Bearing material POM
Flush screw material Zinc plated steel
