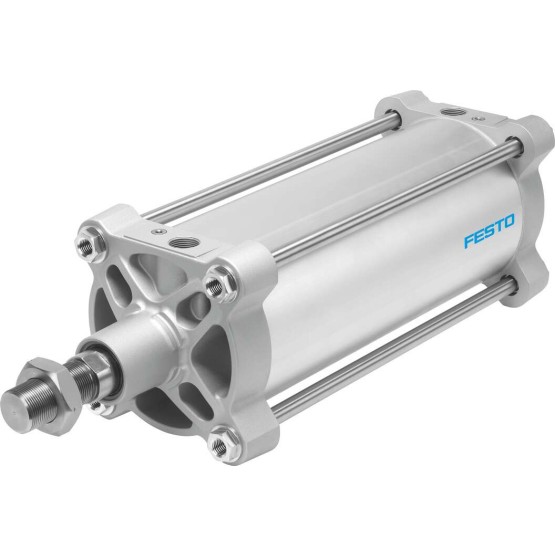

DSBG-160-100-PPVA-N3

$994.09

Standards-Based Cyli is a pneumatic component launched by FESTO, which is widely used in the field of industrial automation. Its product quality has been at the leading level in the industry and won the trust and praise of many customers .

Model:DSBG-160-100-PPVA-N3

FESTO Order Number:2029466

SKU: DSBG-160-100-PPVA-N3 Category: Tag:

Description

Stroke [mm] 100
Piston diameter 160 mm
Piston rod thread M36x2
Dampening PPV: Pneumatic dampening both sides adjustable
installation position arbitrary
Complies to standard ISO 15552
Piston rod end Male thread
Construction set up Pistonpiston rodcylinder tubeTension rod
Position detection For proximity switch
Variants One-sided piston rod
Operating pressure [bar] 0.6 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 2 – moderate corrosion stress
ambient temperature [??C] -20 to 80
Impact energy at the end positions [J] 3,3
Dampening length [mm] 48
Theoretical force at 6 bar, Return flow [N] 11.310
Theoretical force at 6 bar, flow [N] 12064
Moving mass at 0 mm stroke [g] 4.292
Weight supplement per 10 mm stroke [g] 97
Base weight at 0 mm stroke [g] 11.751
Supplement moved mass per 10 mm stroke [g] 208
Fastening type With female threadWith AccessoriesSelectively:
Pneumatic connection G3/4
Material information RoHs compliant
Cover material Aluminium-Guss, beschichtet
Werkstoff Kolbendichtung NBR
Piston material Cast aluminium
Piston rod material High-alloyed steel
Werkstoff Kolbenstangen-Dichtabstreifer NBR
Werkstoff Pufferdichtung TPE-U(PU)
Werkstoff Pufferkolben POM
Cylinder tube material Aluminium-Knetlegierung, gleiteloxiert
Nut material Zinc plated steel
Bearing material Metall-Polymer-Verbund
Werkstoff Bundmutter Zinc-plated steel
Tension anchor material High-alloyed steel
