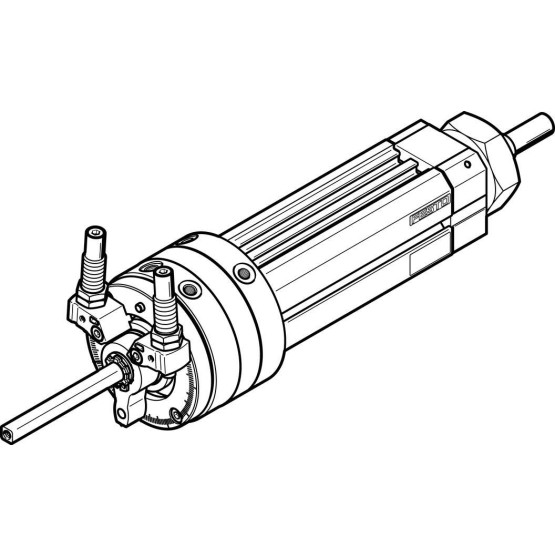

DSMI-40-270-A-B

Description

Settings range swivel angle [deg] 0 to 270
Stroke reduction at the end positions 5 ??
Smallest positioning stroke 15?? for soft stop5?? during positioning
Piston diameter 40 mm
Swivel angle [deg] 0 to 272
Dampening P: Elastic silencer rings / plates double-sided
Position the integration location arbitrary
Integration position soft stop horizontal
Measurement principle travel measurement system Analogue
Construction set up Drive shaft ball bearing mountedRotary vane
Position detection With Angle measurement system integratedFor proximity switch
Operating pressure positioning / soft stop [bar] 4 to 8
Max. swivel frequency at 6 bar [Hz] 2
Max. movement speed [deg/s] 2.000
Min. movement speed [deg/s] 50
Typical positioning time short stroke, horizontal 0,25/0,25 s
Typical positioning time long stroke, horizontal 0,30/0,55 s
Connection resistance [kOhm] 5
Recommended grinder current [??A] < 1 ??A Principle of operation double acting Max. operating voltage DC [V] 42 Max. grinder current short term [??A] 10.000 Max. power input [mA] 4 Nominal operating voltage DC [V] 10 Tolerance connection resistance [%] 20 Permitted voltage oscillations < 1 % CE certificate (see declaration of conformity) to EU EMC directive Operating medium Compressed air to ISO 8573-1:2010 [6:4:4] Information about operating and control medium Oiled operation not possible Continuous impact strength DIN&EC 68 parts 2-82 Tested to severity class 2 Corrosion resistant class KBK 0 - No corrosion stressing Protection category IP65acc. to IEC 60529 Oscillation strength to DIN/IEC 68 part 2-6 Tested to severity class 2 ambient temperature [??C] -10 to 60 Impact energy at the end positions [J] 0,10 Max. axial force [N] 120 Max. mass inertia, horizontal [kg/m2] 0,12 Max. mass inertia, vertical [kg/m2] 0,12 Max. radial force [N] 350 Min. mass moment of inertia, horizontal [kg/m2] 0,0060 Min. mass moment of inertia, vertical [kg/m2] 0,0060 Theoretical torque at 6 bar [Nm] 20 Product weight [g] 3.950 Resolution angle [deg] <= 0,1 deg output signal Analogue Independent linearity 0,0025 Repeatability positioning ?I 0,3 deg Repeatability soft stop end position < 0.2 deg Repeatability soft stop intermediate position ?I 2 deg Electrical connection: path measurement system 4 pin Cable length [MTR] 30 Fastening type with female thread Pneumatic connection G1/8 Housing measurement system material Aluminium wrought alloyanodized Material information Copper and PTFE-free Stopper lever material Aluminium wrought alloyanodized Drive shaft material Nickel-plated steel Fixed limit stop material Steel Housing material Aluminium wrought alloyanodized Measurement system coupling material TPE-U(PU) Feather key material Steel Rotary vane material PET reinforced Plug housing material PA reinforced Cylinder tube material Aluminium wrought alloy
